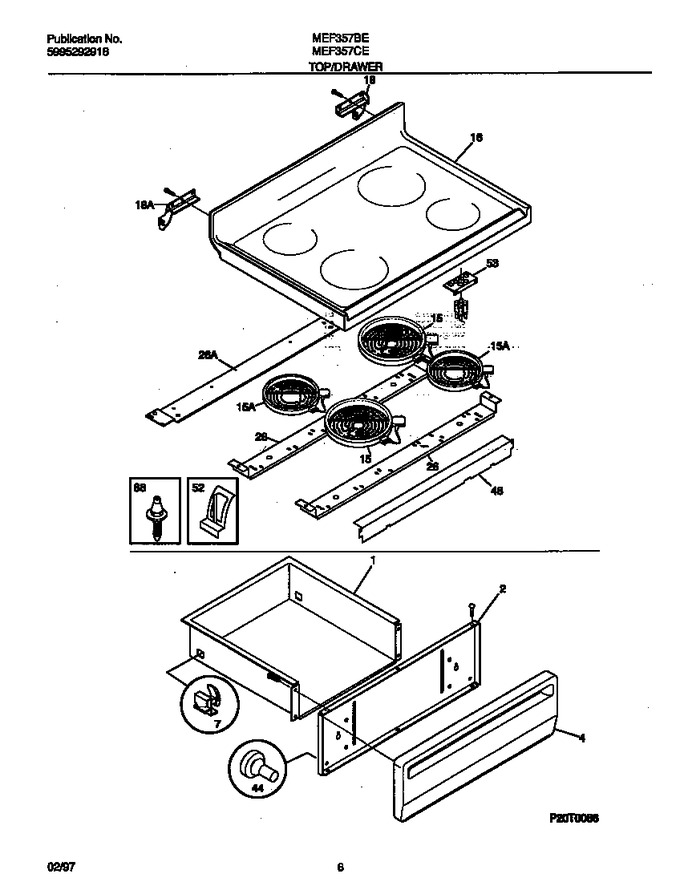

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	08067785		Screw, Hex Washer Head, 8-18(ab) X 1/2 (not Illustrated)		Appelez-nous	-
4	316084405		Panel-drawer, White		Appelez-nous	-
4	316021109		Screw-drawer Pnl (not Illustrated)   (Replaces: 316021112)			Immediately	$ 27.50
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
15	318198817		Element-surface, 1200w, Small/6 Inch, Limit Sw Incl   (Replaces: 316010203)			Immediately	$ 192.78
15	318198834		Element-surface, 2100w, Large/8 Inch, Limit Sw Incl   (Replaces: 316010204)				$ 205.36
16	316098100		Main Top Assy, Glass/steel, Enamel, White		Appelez-nous	-
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
18	5303273063		Hinge-main Top (lh)				$ 48.41
26	316099201		Bracket-support, Chassis		Appelez-nous	-
26	316099101		Channel-support, Element, (2)		Appelez-nous	-
44	3131903		Bumper				$ 55.36
48	316100200		Shield-wire, Main Top		Appelez-nous	-
52	316099400		Clip-spring, Element Mtg, (8)				$ 29.56
53	316099301		Bracket-indicator Light, Hot Surface		Appelez-nous	-
88	316099500		Pin,guide ,(2)				$ 6.53
*33648	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*33649	316519700		Screw,cup Pt,8-18x3/8,hinge,ind Lt Brkt,manf Pnl   (Replaces: 316021108)				$ 10.02
*33650	316089600		Spacer-drawer, (2)		Appelez-nous	-
*33651	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16				$ 6.62
*33652	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-
*33653	5309951550		Cleaner-cooktop		Appelez-nous	-
*33654	316045000		Clip-wire, Harness, Main Top		Appelez-nous	-
*33655	316001738		Harness-top Elements, Ind. Light Incl		Appelez-nous	-
