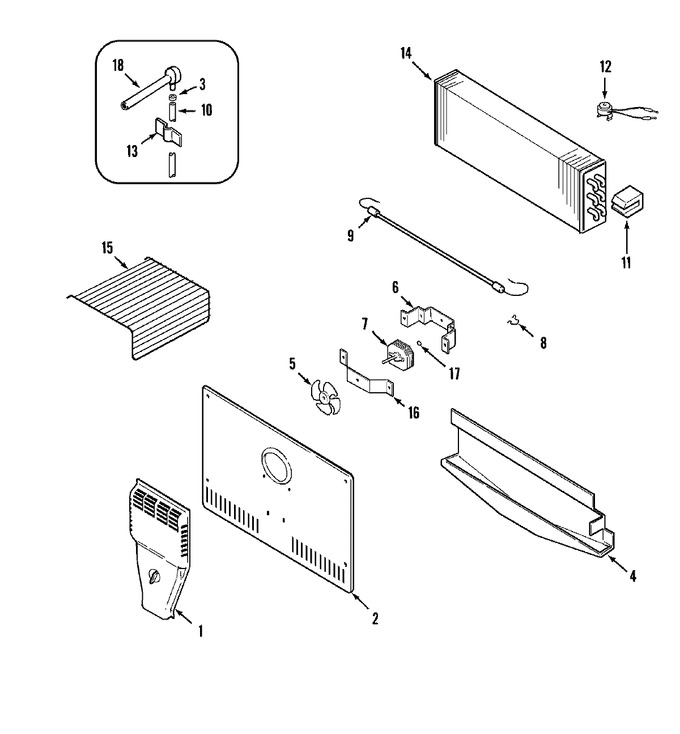

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 61005596 | Tunnel, Air | 10 |
|
- | ||||
| 2 | 61001952 | Plug Button, Evap. Cover | 10 |
|
- | ||||
| 2 | WP489474 | Screw (Replaces: 61006122) | 10 |
|
Immediately | $ 7.17 | |||
| 2 | 61002418 | Cover, Evaporator | 10 |
|
- | ||||
| 2 | 61005920 | Seal, Foam (ctr) | 10 |
|
- | ||||
| 3 | WP488878 | Clamp, Water Line (Replaces: 61001161) | 10 |
|
$ 10.44 | ||||
| 4 | 61004832 | Barrier, Foil | 10 |
|
- | ||||
| 4 | 61004838 | Tray, Drip | 10 |
|
- | ||||
| 5 | 61001935 | Blade, Evaporator Fan | 10 |
|
- | ||||
| 6 | WP489399 | Screw (Replaces: 61005240) | 10 |
|
$ 6.26 | ||||
| 6 | 61001930 | Bracket, Evaporator Fan | 10 |
|
- | ||||
| 7 | WP61004888 | Motor, Evaporator Fan (Replaces: 61004888) | 10 |
|
Immediately | $ 104.99 | |||
| 8 | 61006173 | Clip, Defrost Heater | 10 |
|
$ 24.32 | ||||
| 9 | WP61002045 | Heater, Defrost (Replaces: 61002045) | 10 |
|
Immediately | $ 137.52 | |||
| 10 | WPB5705307 | Tubing, Valve To Grommet (Replaces: 61004390) | 10 |
|
$ 11.19 | ||||
| 11 | 61006174 | Support, Evaporator (lt) | 10 |
|
- | ||||
| 11 | 61006175 | Support, Evaporator (rt) | 10 |
|
- | ||||
| 12 | WP61005254 | Thermostat, Defrost (Replaces: 61005254) | 10 |
|
Immediately | $ 103.09 | |||
| 13 | 61004913 | Clip, Water Line (adhesive) | 10 |
|
- | ||||
| 14 | 12001397 | Evap/heat Exch. Assy. 19` | 10 |
|
$ 295.90 | ||||
| 15 | 61002001 | Trivet | 10 |
|
- | ||||
| 16 | WP489399 | Screw (Replaces: 61005240) | 10 |
|
$ 6.26 | ||||
| 16 | 61002234 | Retainer, Evaporator Fan | 10 |
|
- | ||||
| 17 | 61002235 | Bushing, Evaporator Fan | 10 |
|
- | ||||
| 18 | 61005940 | Grommet, Fill Tube | 10 |
|
$ 23.31 | ||||
| 19 | 61005033 | Wire Harness, Frz. | 10 |
|
- |
