SELECT A DIAGRAM
01 - Cover
02 - Backguard
03 - Body

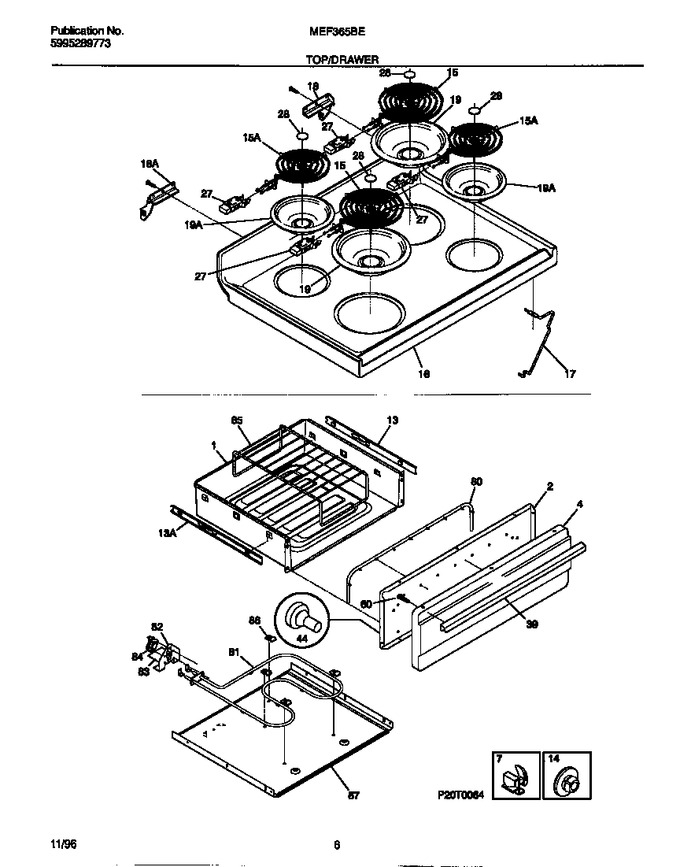

04 - Top/drawer
05 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316094601 | Drawer-warmer |
|
- | |||||
| 2 | 316092901 | Liner, Drawer |
|
- | |||||
| 4 | 316056205 | Panel-drawer-white |
|
- | |||||
| 4 | 08067785 | Screw, Hex Washer Head, 8-18(ab) X 1/2 (not Illustrated) |
|
- | |||||
| 13 | 316096500 | Channel-drawer, Rh |
|
- | |||||
| 13 | 316096501 | Channel-drawer, Lh |
|
- | |||||
| 14 | 3206216 | Plug-button, Glide |
|
- | |||||
| 15 | 316442301 | Element-surface, Large/8 Inch (Replaces: 5303012223) |
|
Immediately | $ 44.39 | ||||
| 15 | 318372211 | Element-surface, Small/6 Inch (Replaces: 08067762) |
|
Immediately | $ 45.14 | ||||
| 16 | 316202388 | Main Top, White (Replaces: 316020907) |
|
$ 407.24 | |||||
| 17 | 316057601 | Rod-maintop Support |
|
$ 64.49 | |||||
| 18 | 5303273063 | Hinge-main Top (lh) |
|
$ 48.41 | |||||
| 18 | 5303273062 | Hinge-main Top (rh) |
|
- | |||||
| 19 | A316222301 | Pan-surface Element, Large/8 Inch (Replaces: 5303935053) |
|
Immediately | $ 12.53 | ||||
| 19 | A316222201 | Pan-surface Element, Small/6 Inch (Replaces: 5303935055) |
|
Immediately | $ 14.64 | ||||
| 27 | 5303935058 | Terminal Block Kit,surface Element (Replaces: 5303912666) |
|
Immediately | $ 13.81 | ||||
| 39 | 316019506 | Handle-drawer, White |
|
- | |||||
| 44 | 3131903 | Bumper |
|
$ 55.36 | |||||
| 60 | 316089500 | Screw-safety Valve, Dual, 10-16 X .486, (4) |
|
$ 13.46 | |||||
| 80 | 316093000 | Seal-door, Warmer Drawer |
|
- | |||||
| 81 | 316093100 | Element, Warmer Drawer |
|
- | |||||
| 82 | 316093200 | Bracket-mounting, Warmer Element |
|
- | |||||
| 83 | 316093300 | Shield-terminal, Warmer |
|
- | |||||
| 84 | 316093500 | Thermo Disc, Warmer |
|
$ 138.39 | |||||
| 85 | 807328301 | Rack, Warmer Drawer (Replaces: 316093600) |
|
$ 87.21 | |||||
| 86 | 316095800 | Clip,hold Down ,warmer Element |
|
$ 9.93 | |||||
| 87 | 316091902 | Base-warmer |
|
- | |||||
| *15527 | 3131387 | Fastener-spacer, Push-in Nut, Nylon |
|
- | |||||
| *15528 | 316001725 | Harness-wiring, Surface Element |
|
- | |||||
| *15529 | 316519700 | Screw, Cup Pt, 8-18 X 3/8, Manifold Pnl (Replaces: 316021108) |
|
$ 10.02 | |||||
| *15530 | 5303280311 | Screw, Waf Hd Sdr, 10-32 X 5/16 |
|
$ 6.62 | |||||
| *15531 | 5303288567 | Screw, 8-18 X 3/8, (4) |
|
- | |||||
| 28A | 3017801 | Medallion, Stainless Steel, Surf Elem |
|
- | |||||
| 28B | 5303017715 | Medallion,1 1/2``dia ,black ,surface Element |
|
$ 64.46 |
