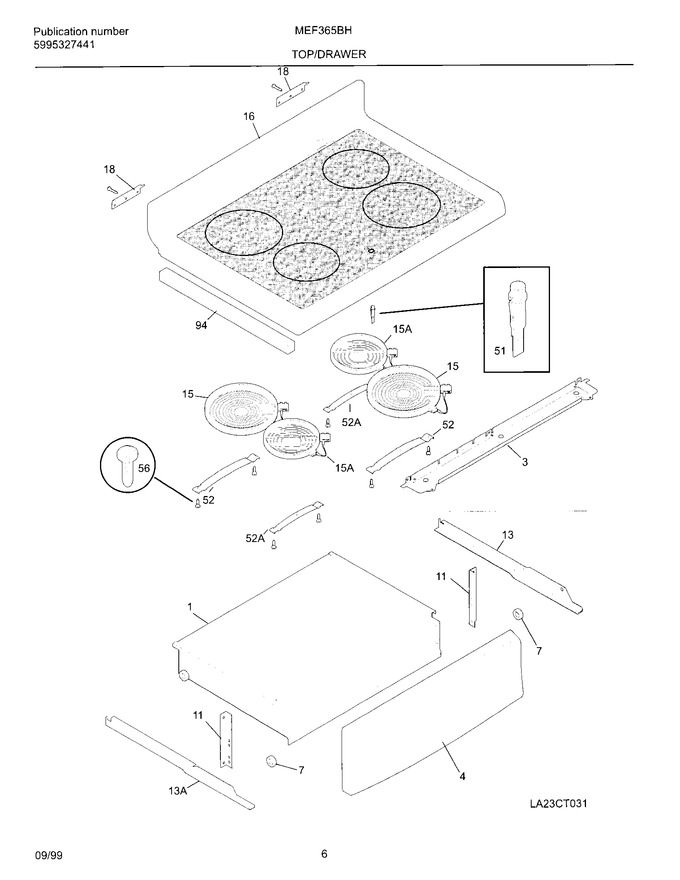

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505701		Drawer-utility   (Replaces: 318107103)			Immediately	$ 143.39
3	318144321		Support-main Top		Appelez-nous	-
4	318044301		Panel-drawer,white		Appelez-nous	-
7	318014800		Spacer				$ 16.59
11	318107500		Bracket-support Drawer				$ 21.85
13	318018100		Channel-drawer,rh			Immediately	$ 30.01
15	903118-9010		Element-surface,1200w   (Replaces: 318178101)			Immediately	$ 236.18
16	318043879		Maintop & Glass Assy, White		Appelez-nous	-
18	318074400		Hinge-main Top		Appelez-nous	-
51	530297484		Light Indicator Hot Surface		Appelez-nous	-
52	318122007		Spring Element Mtg				$ 53.45
56	5304400427		Screw, 6-20 X 1``		Appelez-nous	-
94	318132608		Insulation-top		Appelez-nous	-
13A	318018101		Channel-drawer,lh				$ 63.11
15A	318198817		Element-surface,1200w   (Replaces: 318178100)			Immediately	$ 192.78
52A	318122006		Spring Element Mtg				$ 66.25
