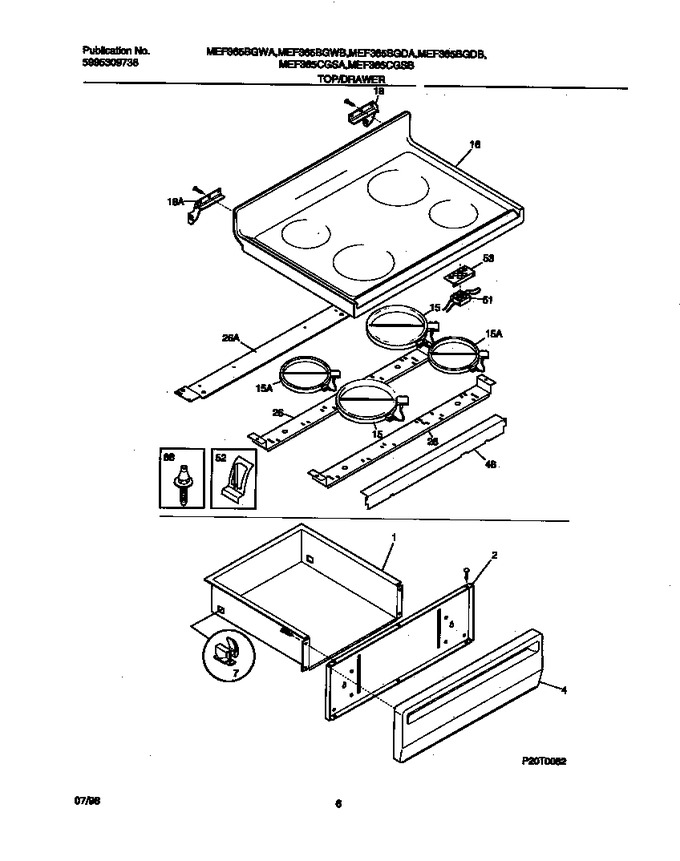

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	316084405		Panel-drawer, White		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
15	318198817		Element-surface,radiant ,small/6 Inch ,   (Replaces: 316010203)			Immediately	$ 192.78
15	318198834		Element-surface,radiant ,   (Replaces: 316010204)				$ 205.36
16	316098105		Main Top, White		Appelez-nous	-
18	5303273063		Hinge-main Top (lh)				$ 48.41
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
26	316099201		Bracket-support, Chassis		Appelez-nous	-
26	316099101		Channel-support, Element, (2)		Appelez-nous	-
48	316100200		Shield-wire, Main Top		Appelez-nous	-
52	316099400		Clip-spring, Element Mtg, (8)				$ 29.56
53	316099300		Bracket-indicator Light, Hot Surface		Appelez-nous	-
88	316099500		Pin,guide ,(2)				$ 6.53
*57693	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*57694	316519700		Screw, Cup Pt, 8-18 X 3/8, Hinge   (Replaces: 316021108)				$ 10.02
*57696	316021109		Screw-8-18 X 1/2 Tr Sqd White   (Replaces: 316021112)			Immediately	$ 27.50
*57697	316045000		Clip-wire, Harness, Main Top		Appelez-nous	-
*57698	316089600		Spacer-drawer, (2)		Appelez-nous	-
*57699	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
*57700	5309951550		Cleaner-cooktop		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
