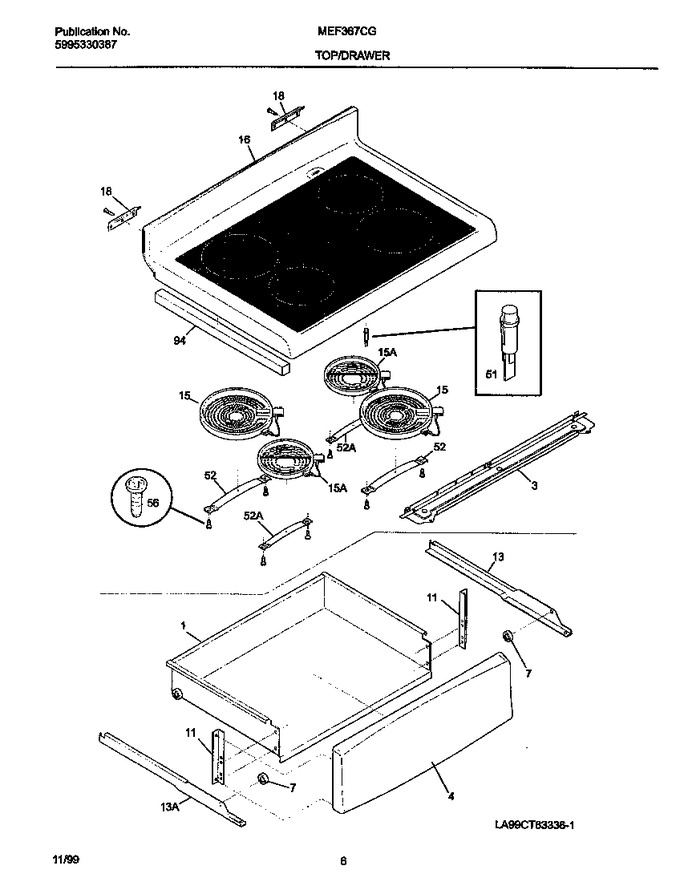

04 - Top/drawer
05 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304505701 | Drawer-utility (Replaces: 318107103) |
|
Immediately | $ 143.39 | ||||
| 3 | 318144321 | Support-main Top |
|
- | |||||
| 4 | 318044301 | Panel-drawer,white |
|
- | |||||
| 7 | 318014800 | Spacer |
|
$ 16.59 | |||||
| 11 | 318107500 | Bracket-support,drawer ,(2) |
|
$ 21.85 | |||||
| 13 | 318018101 | Channel-drawer,lh |
|
$ 63.11 | |||||
| 13 | 318018100 | Channel-drawer,rh |
|
Immediately | $ 30.01 | ||||
| 15 | 318198817 | Element-surface,radiant ,small/6 Inch ,1200w,1200w ,smal (Replaces: 318178100) |
|
Immediately | $ 192.78 | ||||
| 15 | 903118-9010 | Element-surface,radiant ,2100w ,2100w ,large (Replaces: 318178101) |
|
Immediately | $ 236.18 | ||||
| 16 | 318043864 | Maintop & Glass Assy,glass |
|
- | |||||
| 18 | 318074400 | Hinge-main Top,(2) |
|
- | |||||
| 51 | 5303297484 | Light-indicator, Hot Surface |
|
- | |||||
| 52 | 318122007 | Spring-element Mtg,2100w ,large |
|
$ 53.45 | |||||
| 52 | 318122006 | Spring-element Mtg,1200w & 1800w ,small |
|
$ 66.25 | |||||
| 56 | 5304400427 | Screw,6-20 X 1/2 |
|
- | |||||
| 94 | 318132608 | Insulation-top |
|
- | |||||
| *89805 | 5303131801 | Screw, 10 X 3/8 |
|
- |
