SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body

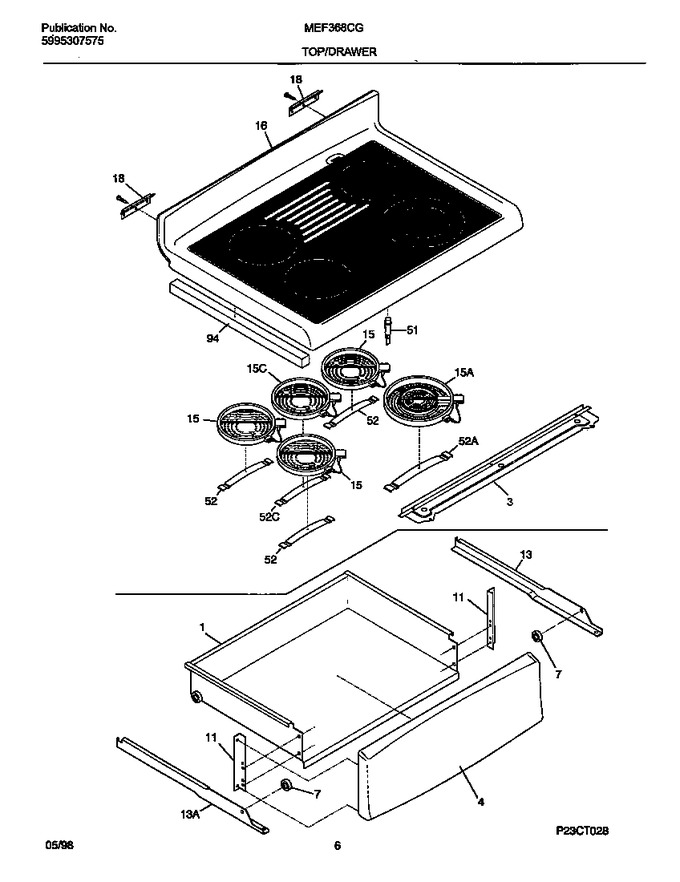

04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505701		Drawer-utility   (Replaces: 318107103)			Immediately	$ 143.39
3	318144301		Support-main Top		Appelez-nous	-
4	318044301		Panel-drawer,white		Appelez-nous	-
7	5303324497		Spacer		Appelez-nous	-
11	318107500		Bracket-support Drawer				$ 21.85
13	318018101		Channel-drawer,lh				$ 63.11
13	318018100		Channel-drawer,rh			Immediately	$ 30.01
15	389082702		Element-surface, Radiant Dual   (Replaces: 316049703)				$ 284.39
15	316098200		Element-warmer/100w		Appelez-nous	-
15	318198817		Element-surface, Radiant 1200w   (Replaces: 316010203)			Immediately	$ 192.78
16	318043866		Main Top		Appelez-nous	-
18	318074400		Hinge-main Top		Appelez-nous	-
51	5303297484		Light-indicator, Hot Surface		Appelez-nous	-
52	318122006		Spring Element Mtg				$ 66.25
52	318122007		Spring Element Mtg				$ 53.45
52	318122004		Spring-element Mtg				$ 55.76
52	318122005		Spring-element Mtg		Appelez-nous	-
56	5304400427		Screw, 6-20 X 1``		Appelez-nous	-
94	318132608		Insulation-top		Appelez-nous	-
*62327	5303131801		Screw, 10 X 3/8		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
