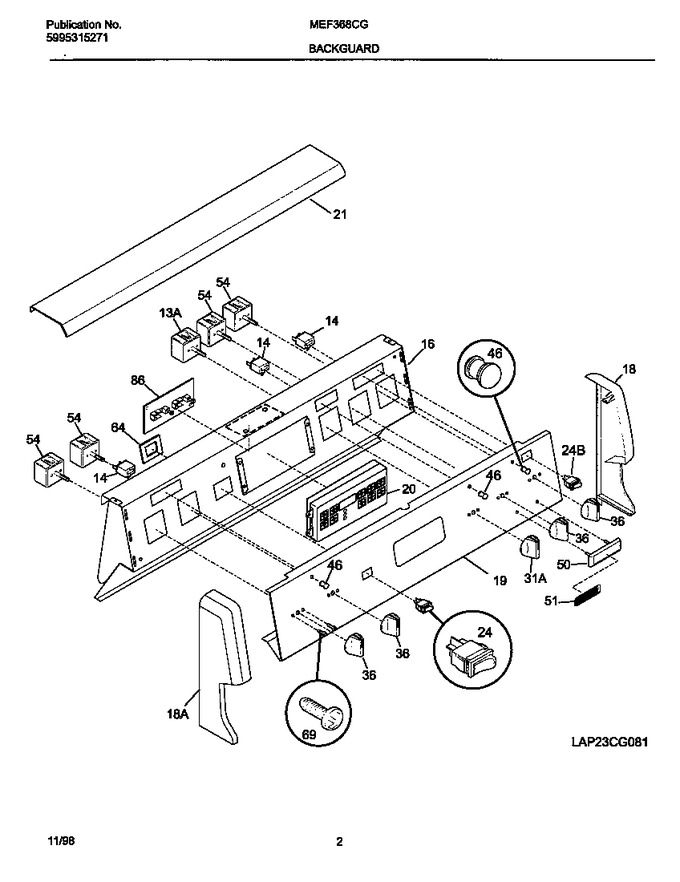

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
13	5304508926		Switch-warmer Zone   (Replaces: 316095500)			Immediately	$ 84.18
14	3200297		Light-lamp/indicator		Appelez-nous	-
16	318117428		Panel-switch		Appelez-nous	-
18	318118301		End Cap,lh		Appelez-nous	-
18	318118300		End Cap,rh		Appelez-nous	-
19	318117159		Panel-control,metal		Appelez-nous	-
20	318013010		Clock/timer		Appelez-nous	-
21	318118000		Trim-canopy/shield,white		Appelez-nous	-
24	316083100		Switch-rocker,white, Dual Element   (Replaces: 316076301)				$ 89.31
24	5304527842		Switch-rocker, Oven Light, White   (Replaces: 316005607)			Immediately	$ 16.13
31	318165100		Knob-warmer		Appelez-nous	-
36	318017110		Knob-control				$ 43.00
46	318228310		Lens,indicator Light   (Replaces: 5303297274)			Immediately	$ 22.91
50	318146600		Nameplate				$ 8.82
51	318075703		Label,nameplete(frigidaire)		Appelez-nous	-
51	318075707		Label,nameplete(gibson)		Appelez-nous	-
51	318075705		Label,nameplete(kelvinator)		Appelez-nous	-
51	318075704		Label,nameplete(white-westinghouse)		Appelez-nous	-
54	318120500		Switch-surface Unit				$ 186.80
64	318112200		Plate-mtg Rocker Switch		Appelez-nous	-
69	5303288565		Screw   (Replaces: 5303323134)				$ 3.12
86	318111201		Plate-connecting		Appelez-nous	-
*32000	5303311528		Screw		Appelez-nous	-
*32001	134178901		Screw   (Replaces: 5303211311)				$ 14.89

    View Diagram in Separate Window       Print Part List
