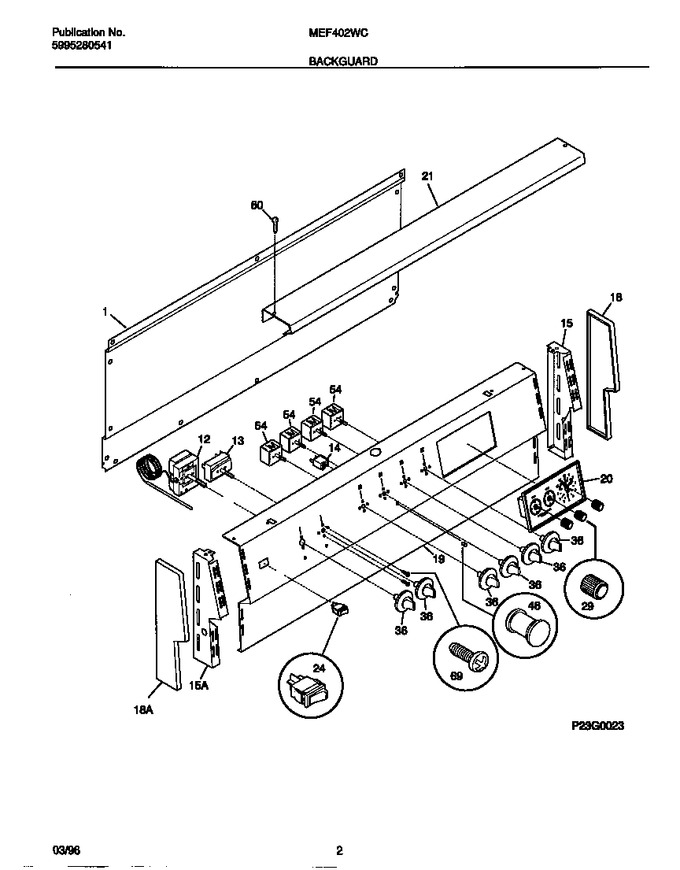

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303304006		Shield-backguard, Rear Wall		Appelez-nous	-
13	08015934		Switch, Selector		Appelez-nous	-
15	5303304001		Bracket-endcap, Lh				$ 5.62
18	5303304541		End Cap, Lh		Appelez-nous	-
18	5303304540		End Cap, Rh		Appelez-nous	-
19	318005700		Panel-control		Appelez-nous	-
20	5303304817		Clock/timer, Analog 3 Stem		Appelez-nous	-
21	5303304545		Trim-canopy/shield		Appelez-nous	-
24	5304527841		Switch-light/lamp, Rocker Type, Black   (Replaces: 316005602)			Immediately	$ 11.38
29	316029000		Knob-clock		Appelez-nous	-
36	5303304954		Knob-control, (6)		Appelez-nous	-
46	5303271239		Lens-light/lamp, Indicator		Appelez-nous	-
60	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
69	5303323137		Screw, Switch Mtg, (6)   (Replaces: 5303305528)				$ 11.88
*26000	316067000		Bezel, Nameplate, Black		Appelez-nous	-
12A	5303304955		Thermostat-oven		Appelez-nous	-
12B	318055300		Spacer, Thermo Bracket (not Illustrated)		Appelez-nous	-
14A	3051539		Light/lamp-oven, Indicator				$ 60.53
14B	5303051533		Light-lamp/indicator				$ 53.81
15A	5303304000		Bracket-endcap, Rh				$ 7.14
15B	5303304544		Spacer-end Cap (not Illustrated)		Appelez-nous	-
54A	5303299248		Switch-surface Unit, Small		Appelez-nous	-
54B	5303299249		Switch-surface Unit, Large		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
