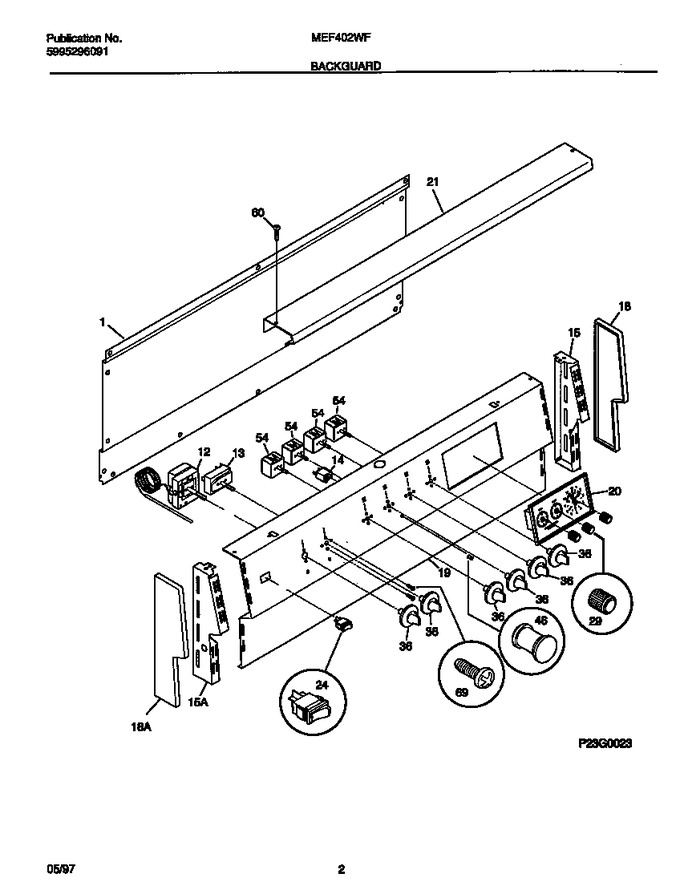

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303304006		Shield-backguard, Rear Wall		Appelez-nous	-
13	08015934		Switch, Selector		Appelez-nous	-
14	3051539		Light/lamp-oven, Indicator				$ 60.53
15	5303304001		Bracket-endcap, Lh				$ 5.62
18	5303304541		End Cap, Lh		Appelez-nous	-
18	5303304540		End Cap, Rh		Appelez-nous	-
19	318005708		Panel-control, Almond		Appelez-nous	-
21	318051301		Trim-backguard, Top		Appelez-nous	-
24	5304527841		Switch-rocker, Oven Light, Black   (Replaces: 316005602)			Immediately	$ 11.38
29	5303311122		Button-clock		Appelez-nous	-
36	5303304954		Knob-control, (6)		Appelez-nous	-
46	5308006417		Lens-light/lamp, Indicator, Red, (2)				$ 19.06
54	318120500		Switch-surface Unit, (4)				$ 186.80
60	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
69	5303323137		Screw, Switch Mtg   (Replaces: 5303305528)				$ 11.88
*83680	318015005		Bracket-clock Mtg		Appelez-nous	-
*83681	316096900		Bezel,nameplate ,black				$ 15.38
*83682	5303308450		Screw, 8 X 3/8, Clock/door		Appelez-nous	-
12A	318059100		Thermostat-oven		Appelez-nous	-
12B	318055300		Spacer, Thermo Bracket (not Illustrated)		Appelez-nous	-
15A	5303304000		Bracket-endcap, Rh				$ 7.14
15B	5303304544		Spacer-end Cap (not Illustrated)		Appelez-nous	-
20A	316065400		Clock/timer		Appelez-nous	-
20B	5303288566		Screw-clock (not Illustrated)   (Replaces: 5303320848)				$ 2.12
