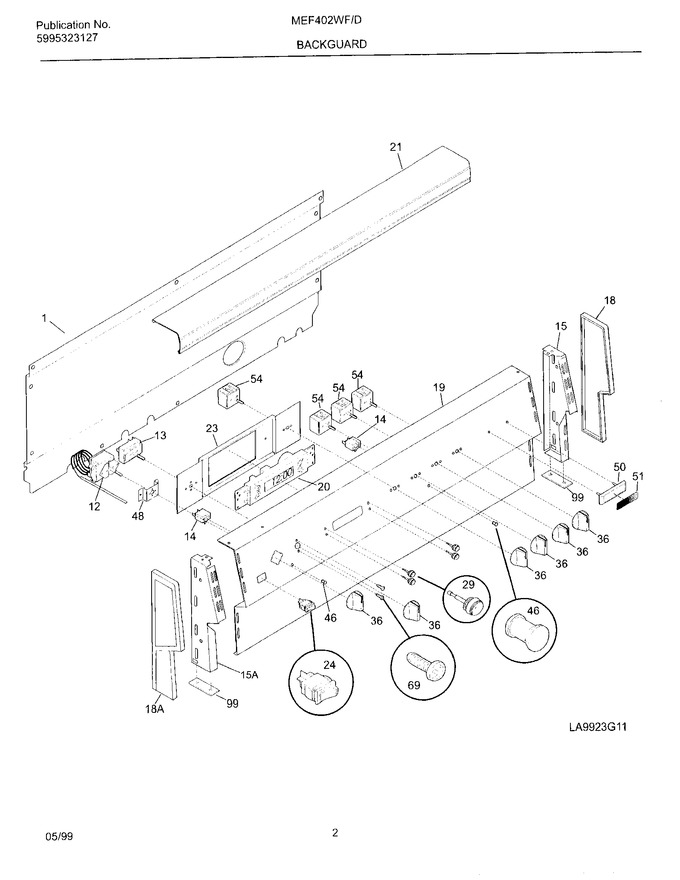

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303304006		Shield-backguard, Rear Wall		Appelez-nous	-
12	318059100		Thermostat-oven		Appelez-nous	-
13	08015934		Switch, Selector		Appelez-nous	-
14	3051539		Light/lamp-oven, Indicator				$ 60.53
15	5303304000		Bracket-endcap, Rh				$ 7.14
18	5303304540		End Cap,black ,rh		Appelez-nous	-
19	318005722		Panel-control		Appelez-nous	-
20	318011410		Clock T.o.d.		Appelez-nous	-
21	318051301		Trim-backguard, Top		Appelez-nous	-
23	318015028		Bracket-clock Mtg		Appelez-nous	-
24	5304527841		Switch-rocker, Oven Light, Black   (Replaces: 316005602)			Immediately	$ 11.38
29	5303272306		Button-clock		Appelez-nous	-
36	5303304954		Knob		Appelez-nous	-
46	5308006417		Lens-light / Lamp, Indicator				$ 19.06
48	318055300		Spacer,thermo Bracket		Appelez-nous	-
50	316096900		Bezel,nameplate ,black				$ 15.38
51	316095401		Nameplate-tappan		Appelez-nous	-
54	318120500		Switch-surface Unit				$ 186.80
69	5303288565		Screw, Switch Mtg., 8-32 X 3/16   (Replaces: 5303323134)				$ 3.12
99	5303304544		Spacer,end Cap Mtg.		Appelez-nous	-
	5303308450		Screw, 8 X 3/8		Appelez-nous	-
15A	5303304001		Bracket-endcap, Lh				$ 5.62
18A	5303304541		End Cap,black ,lh		Appelez-nous	-
