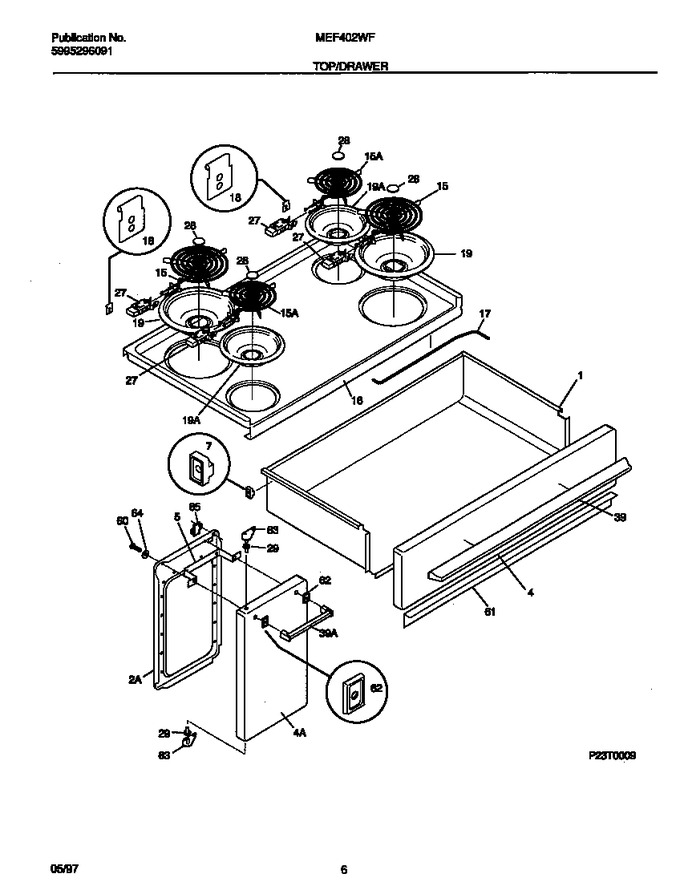

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3202108		Drawer-utility		Appelez-nous	-
2	318048201		Liner-small Door		Appelez-nous	-
4	318009308		Panel-oven Door, White, Small		Appelez-nous	-
4	08011980		Panel-drawer, White		Appelez-nous	-
5	318014500		Spacer-handle		Appelez-nous	-
7	5301315217		Glide-drawer		Appelez-nous	-
15	PS12-4BK		Element-surface, Small, 1500w   (Replaces: 5303309000)			Immediately	$ 35.96
15	316442301		Element-surface, Large/8 Inch   (Replaces: 5303309001)			Immediately	$ 44.39
16	08011961		Main Top, White		Appelez-nous	-
17	3051554		Rod-maintop Support		Appelez-nous	-
19	316048414		Pan-surface Element, Small/6 Inch, (2)   (Replaces: 5303280336)			Immediately	$ 16.11
19	316048413		Pan-surface Element, Large/8 Inch, (2)   (Replaces: 318067010)			Immediately	$ 9.85
28	5303309002		Medallion, Surface Element		Appelez-nous	-
29	318141800		Spacer-hinge Pin				$ 14.49
39	5303304011		Handle-door, Small		Appelez-nous	-
39	3201576		Handle-drawer		Appelez-nous	-
60	3051070		Screw, Hex Washer Head, 10-24 X 7/16, Special		Appelez-nous	-
61	318107700		Toeplate		Appelez-nous	-
62	5303310504		Spacer-handle, (2)		Appelez-nous	-
64	5303304015		Washer, Padded		Appelez-nous	-
65	3204306		Latch-door, Small		Appelez-nous	-
*83692	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*83693	08011955		Screw, Pan Head, 10-24 X 3/8, Square Drive			Immediately	$ 9.36
*83694	5303317975		Screw-oven Door, 10 X 1/2, (5)		Appelez-nous	-
18A	3051658		Bracket-hinge, Main Top Lh		Appelez-nous	-
18B	5301315631		Bracket-hinge, Main Top Rh		Appelez-nous	-
27A	RR500		Terminal Block, Surface Element   (Replaces: 5303323704)			Immediately	$ 9.42
27B	318122500		Support, Terminal Block, (4) (not Illustrated)		Appelez-nous	-
63A	318024505		Hinge-lower		Appelez-nous	-
63B	318024507		Hinge-top		Appelez-nous	-
