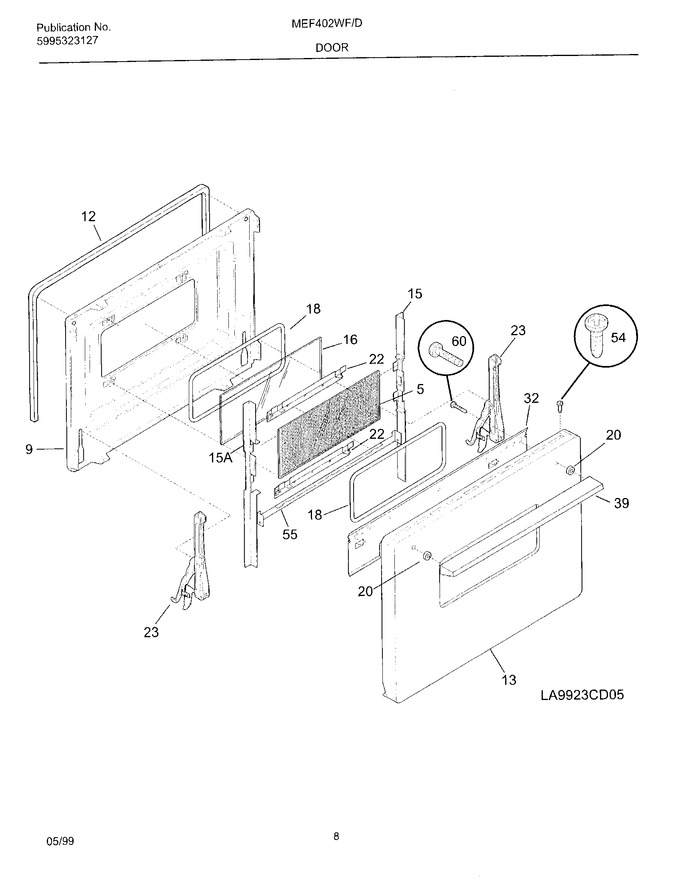

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	5303310508		Glass-oven Door, Inner		Appelez-nous	-
9	318048707		Liner-oven Door		Appelez-nous	-
12	318053103		Seal-oven Door			Immediately	$ 150.03
13	318009101		Panel-oven Door		Appelez-nous	-
15	318024002		Bracket-glass Mtg, Rh		Appelez-nous	-
16	318041620		Glass-oven Door,heat Barrier				$ 906.47
18	5303310505		Seal-rope		Appelez-nous	-
20	5303310504		Spacer-handle		Appelez-nous	-
22	5303310511		Retainer-glass		Appelez-nous	-
23	5303310506		Hinge-oven Door,assembly		Appelez-nous	-
32	318057202		Deflector-handle		Appelez-nous	-
39	5303304012		Handle-door, Oven		Appelez-nous	-
54	5303317975		Screw,10 X 1/2		Appelez-nous	-
55	318122300		Bracket-glass				$ 11.39
60	5303317085		Screw-handle		Appelez-nous	-
	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18
15A	318024003		Bracket-glass Mtg, Lh		Appelez-nous	-
