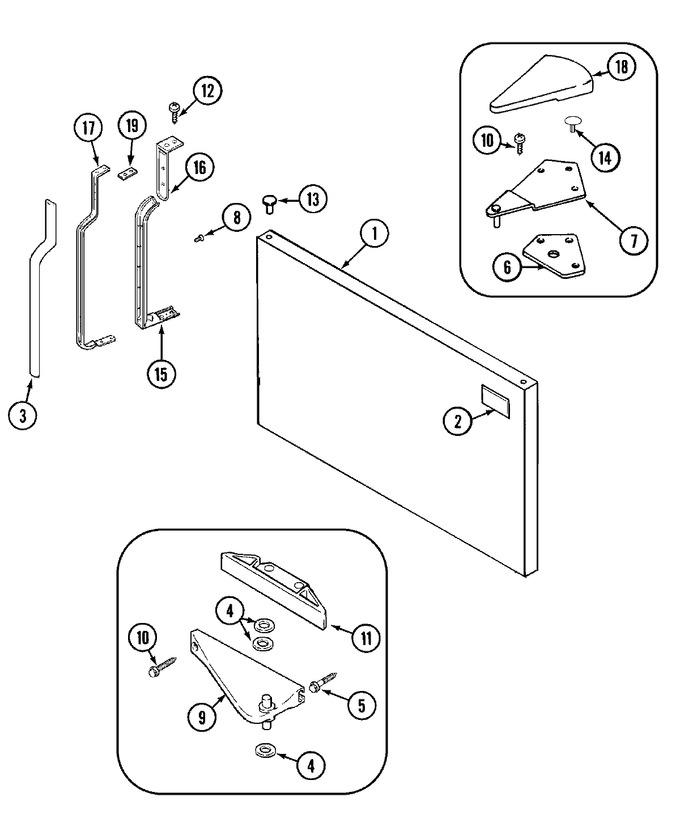

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61005658		Label, Dual Energy Guide	10	Appelez-nous	-
1	61002552		Panel, Frz. Door (wht)	10	Appelez-nous	-
2	61002164		Nameplate (wht)	10	Appelez-nous	-
3	61002209		Cover, Handle (wht)	10	Appelez-nous	-
4	WP61002231		Washer, Hinge   (Replaces: 61002231)	10			$ 10.92
5	61002025		Screw	10	Appelez-nous	-
6	61001922		Shim, Upper Hinge	10			$ 0.71
7	61004896		Hinge, Upper	10			$ 36.71
8	65275-44		Screw	10	Appelez-nous	-
9	61001920		Hinge, Center (wht)	10			$ 32.71
10	WP3-24838-048		Screw   (Replaces: 61004763)	10			$ 7.00
10	3400112		Screw   (Replaces: 61003128)	10			$ 62.96
11	W10856122		Screw   (Replaces: 61002180)	10			$ 6.98
11	61004481		Stop, Door (wht)	10	Appelez-nous	-
12	61002924		Screw	10	Appelez-nous	-
13	61001908		Plug Button, Hinge Cup (wht)	10	Appelez-nous	-
14	61001923		Plug Button, Hinge (wht)	10	Appelez-nous	-
15	61002149		Handle (wht)	10	Appelez-nous	-
15	61001795		Plug Button (wht)	10	Appelez-nous	-
16	61002325		Base, Extension	10	Appelez-nous	-
17	61002326		Frame, Handle	10	Appelez-nous	-
18	61002076		Cover, Upper Hinge (wht)	10	Appelez-nous	-
19	67934-1		Shim, Handle	10	Appelez-nous	-
