SELECT A DIAGRAM
02 - Backguard, Cooktop And Door Parts

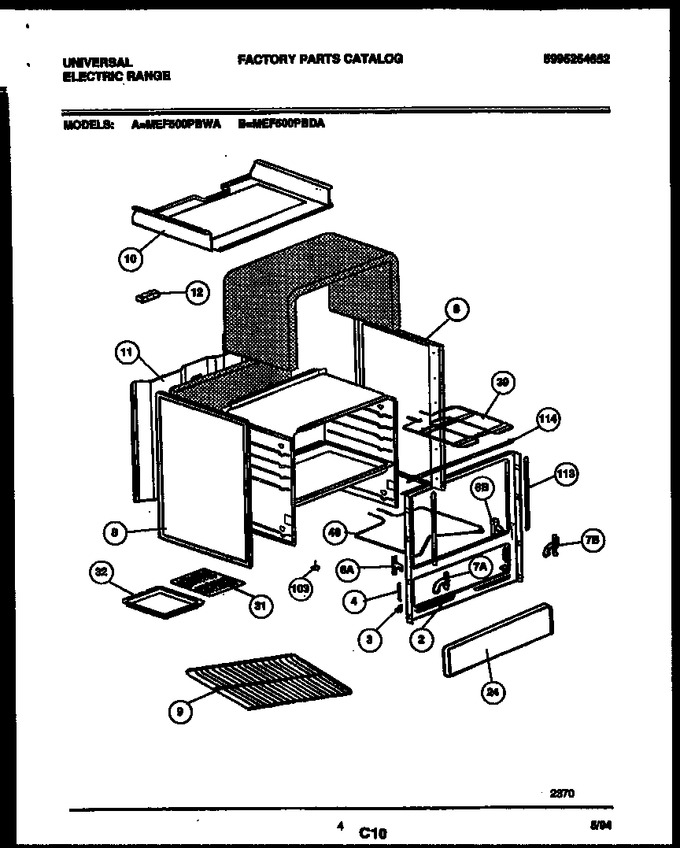

03 - Body Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5303285746 | Bracket-spring |
|
- | |||||
| 4 | 5303285747 | Spring-oven Door |
|
- | |||||
| 8 | 5303285711 | Panel-side Lt/rt (almond) |
|
- | |||||
| 9 | 5303285756 | Rack-oven |
|
- | |||||
| 10 | 5303285748 | Burner Box |
|
- | |||||
| 11 | 5303285754 | Panel-main Back |
|
- | |||||
| 12 | 5303285956 | Terminal Block |
|
- | |||||
| 24 | 5303285709 | Panel-dummy (almd) |
|
- | |||||
| 31 | 5303285964 | Grill-broiler |
|
- | |||||
| 32 | 5303285963 | Pan-broiler |
|
- | |||||
| 39 | 5303285966 | Element-broil |
|
- | |||||
| 40 | 5303285965 | Element-bake |
|
- | |||||
| 103 | 5303285762 | Leveler-leg |
|
- | |||||
| 113 | 5303285764 | Seal-door Sides |
|
- | |||||
| 114 | 5303285765 | Seal-door Top |
|
$ 81.74 | |||||
| *10360 | 5303285773 | Insulation-back |
|
- | |||||
| *10360 | 5303285946 | Bracket-dummy Drwr (upper) |
|
- | |||||
| *10360 | 5303286167 | Insulation-wrapper |
|
- | |||||
| *10360 | 5303285775 | Hinge Pin-oven Door |
|
- | |||||
| *10360 | 5303285967 | Cover-main Wire |
|
- | |||||
| *10360 | 5303285968 | Clip-thermal Bulb |
|
- | |||||
| *10360 | 5303285947 | Bracket-dummy Drwr (lower) |
|
- | |||||
| *10360 | 5303285771 | Anti-tip Kit |
|
- | |||||
| *10360 | 5303286095 | Brkt-broil Element |
|
- | |||||
| *10360 | 5303286166 | Insulation-oven Btm |
|
- | |||||
| 6A | 5303285750 | Hinge-lh-oven Body |
|
- | |||||
| 6B | 5303285751 | Hinge-rh-oven Body |
|
- | |||||
| 7A | 5303285752 | Hinge-lh-oven Door |
|
- | |||||
| 7B | 5303285752 | Hinge-rh-oven Door |
|
- |
