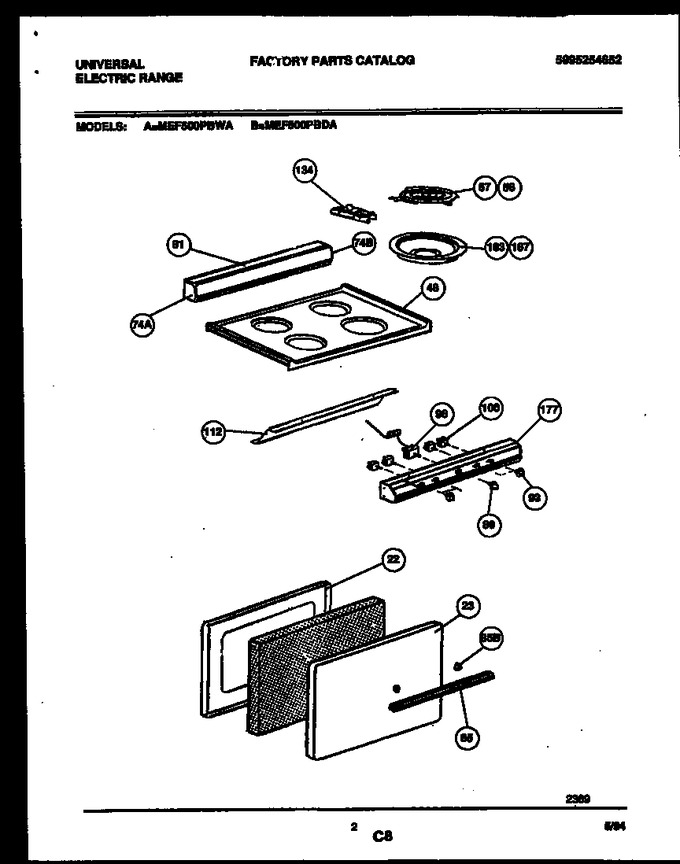

02 - Backguard, Cooktop And Door Parts
03 - Body Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 22 | 5303285730 | Liner-oven Door |
|
- | |||||
| 23 | 5303285706 | Panel-door, White |
|
- | |||||
| 48 | 5303286170 | Top-main, White |
|
- | |||||
| 57 | 318372210 | Element 6`` (3) (Replaces: 5303015716) |
|
Immediately | $ 20.21 | ||||
| 58 | 316442300 | Element 8`` (1) (Replaces: 5303015715) |
|
Immediately | $ 59.16 | ||||
| 81 | 5303286101 | Panel-bkgd (white) |
|
- | |||||
| 85 | 5303285738 | Handle-oven Door |
|
- | |||||
| 89 | 5303285940 | Knob-thermostat |
|
- | |||||
| 93 | 5303285939 | Knob-control |
|
- | |||||
| 96 | 5303285955 | Thermostat-oven |
|
- | |||||
| 100 | 5303285954 | Switch-``6`` S/u (3) |
|
- | |||||
| 112 | 5303286172 | Cover-switch |
|
- | |||||
| 134 | 5303285957 | Receptacle-top Elements, (4) |
|
- | |||||
| 163 | 316048414 | Pan-small (Replaces: 5303280336) |
|
Immediately | $ 16.11 | ||||
| 167 | 316048413 | Pan-large (Replaces: 5303013588) |
|
Immediately | $ 9.85 | ||||
| 177 | 5303304951 | Panel-control, White |
|
- | |||||
| *10360 | 5303285941 | Indicator Light (2) |
|
- | |||||
| *10360 | 5303285962 | Nut-pal |
|
- | |||||
| *10360 | 5303285950 | Bezel |
|
- | |||||
| *10360 | 5303285741 | Insulation-oven Door |
|
- | |||||
| 100A | 5303286367 | Switch ``8`` S/u (1) |
|
- | |||||
| 74A | 5303285714 | End Cap, Lh, Black |
|
- | |||||
| 74B | 5303285715 | End Cap, Rh, Black |
|
- | |||||
| 85B | 5303285740 | Spacer-handle |
|
- |
