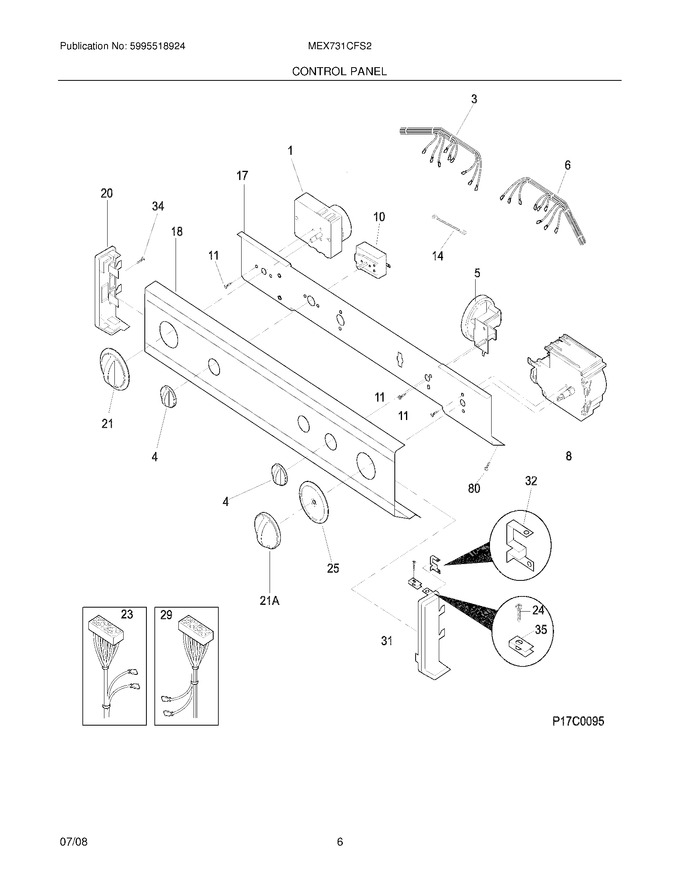

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	131858004		Knob,rotary ,white/dark Gray			Immediately	$ 55.29
5	134422700		Switch,pressure ,3 Position ,3/4 Hp			Immediately	$ 98.06
11	218359202		Screw,cr Pan Head `8-32 X 0.250 ,thread Forming   (Replaces: 5303283289)				$ 10.63
17	134263400		Bracket,control Mount		Appelez-nous	-
18	134091100		Panel,trimplate ,console Front				$ 186.32
20	131288101		End Cap,white ,lh				$ 53.02
21	131859104		Knob,dryer Timer ,white/dark Gray			Immediately	$ 60.72
24	134156200		Screw,flat Head ,8-18ab X 0.44 ,quad Drive			Immediately	$ 14.89
25	131976702		Pointer,timer ,white ,gray Indicator				$ 44.89
31	131288211		End Cap, White, Rh				$ 64.79
32	3204357		Clip-grounding				$ 60.11
34	131243700		Screw, Pan Head, 8-18ab X 0.375				$ 3.36
35	5308014350		Clip,end Cap Mtg ,u-type		Appelez-nous	-
80	131168200		Screw,10-16ab X 0.375   (Replaces: 134547800)			Immediately	$ 14.18
21A	131977001		Knob,washer Timer ,white/dark Gray				$ 31.69
F1	131225300		Timer,3-off				$ 318.89
F10	134399700		Switch,start ,lcd			Immediately	$ 83.77
F14	134446800		Resistor,power				$ 66.68
F23	134605500		Wiring Harness,main				$ 144.64
F29	134769600		Wiring Harness,washer ,lower				$ 349.44
F3	131484100		Wiring Harness,dryer Control				$ 158.01
F6	134542400		Wiring Harness,washer Control ,w/o Temp Switch				$ 74.71
F8	131964100		Timer,washer			Immediately	$ 279.77
FNI	134101400		Terminal Block,main			Immediately	$ 55.99
NI	131535101		Bezel,nameplate ,white				$ 2.40
NI	5304426200		Screw,terminal Block		Appelez-nous	-
