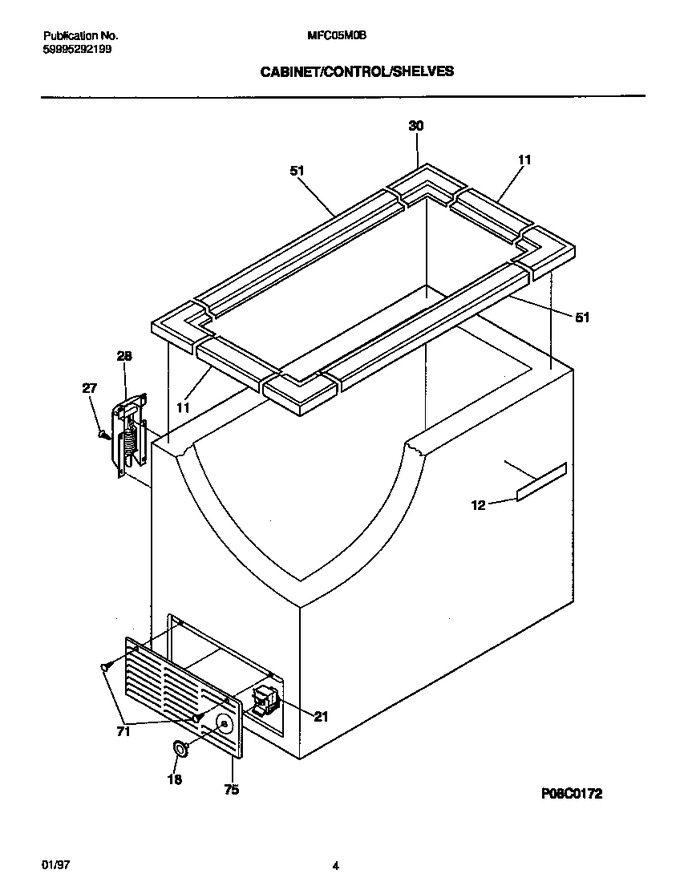

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 216105600 | Breaker-ends, White |
|
- | |||||
| 12 | 216373000 | Frame-nameplate |
|
$ 4.04 | |||||
| 18 | 216034510 | Knob-control |
|
- | |||||
| 21 | 216424300 | Control-temperature |
|
- | |||||
| 27 | 216337700 | Screw, Swage, Hwh 20-24 X .500 |
|
- | |||||
| 28 | 216478800 | Hinge Assy |
|
- | |||||
| 30 | 216105500 | Breaker-corners,white |
|
$ 46.83 | |||||
| 51 | 216105700 | Breaker-hinge\front,white |
|
- | |||||
| 71 | 131168200 | Screw, 8-18 X 0.31 |
|
Immediately | $ 14.18 | ||||
| 75 | 216329402 | Panel-access,white |
|
- | |||||
| *08721 | 5303321319 | Paint, Touch-up, White (Replaces: 5303305324) |
|
Immediately | $ 13.46 |
