SELECT A DIAGRAM

01 - Cover


02 - Door

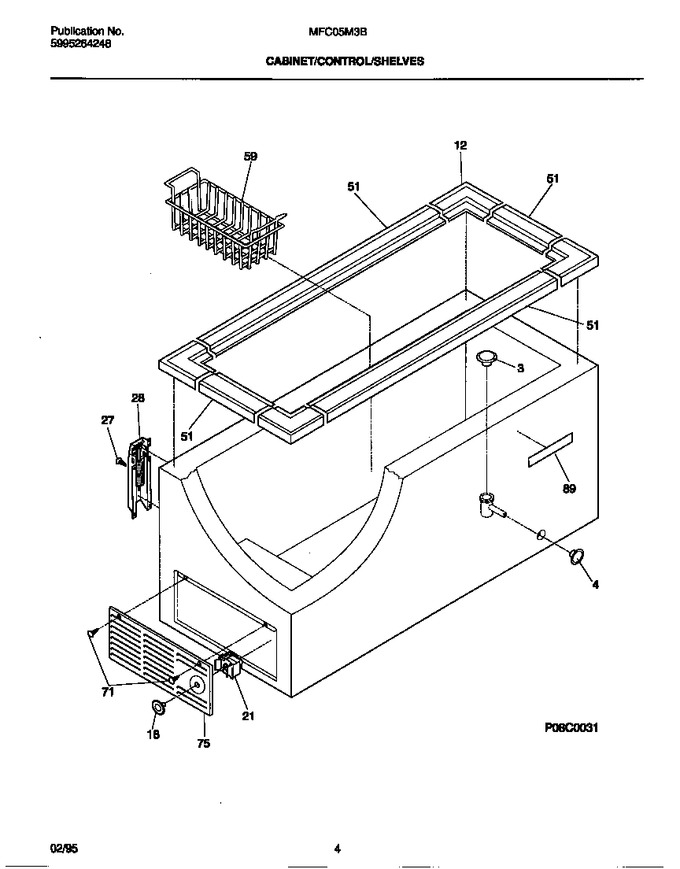

03 - Cabinet/control/shelves


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5306593887		Plug-drain, White		Appelez-nous	-
4	216073900		Plug, Drain		Appelez-nous	-
12	216105500		Breaker, White, Corners				$ 46.83
18	216034510		Knob-control		Appelez-nous	-
21	216356800		Control, Temperature		Appelez-nous	-
27	5309950602		Screw Hinge				$ 5.30
28	216119101		Hinge Assy		Appelez-nous	-
51	216117500		Breakers, White, Hinge/side/fr		Appelez-nous	-
59	216848200		Basket   (Replaces: 216078600)				$ 53.21
71	5303302714		Screw, 8, 18 X 3/4, (2)		Appelez-nous	-
75	216329402		Panel-access,white		Appelez-nous	-
89	215366301		Frame - Nameplate,white		Appelez-nous	-
*42201	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46

    View Diagram in Separate Window       Print Part List
