SELECT A DIAGRAM

01 - Cover


02 - Door


03 - Cabinet


04 - System

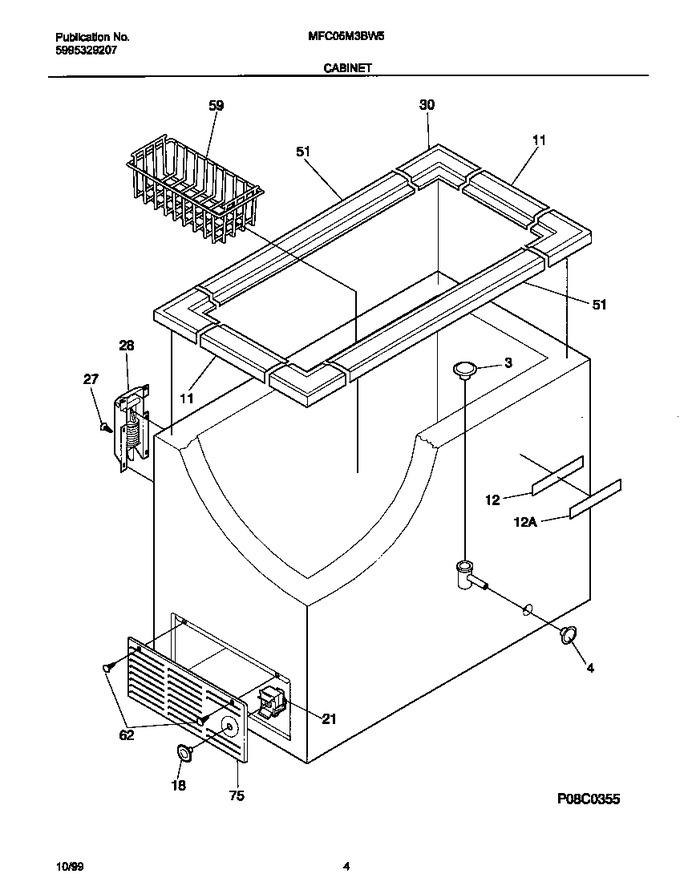

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216073900		Plug-drain,interior		Appelez-nous	-
4	216502600		Plug-drain,exterior			Immediately	$ 17.35
11	216105600		Breaker-ends, White		Appelez-nous	-
12	316095402		Nameplate,white				$ 148.59
12	216373000		Frame-nameplate				$ 4.04
18	216591602		Knob,temp Control		Appelez-nous	-
21	216356800		Control, Temperature		Appelez-nous	-
27	216337700		Screw,hex Washer Head `10-24 X 0.500		Appelez-nous	-
28	216478800		Hinge Assy		Appelez-nous	-
30	216105500		Breaker-corners,white				$ 46.83
51	216105700		Breaker-hinge\front,white		Appelez-nous	-
59	216848200		Basket   (Replaces: 216078600)				$ 53.21
62	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
75	216329402		Panel-access,white		Appelez-nous	-
*87521	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46

    View Diagram in Separate Window       Print Part List
