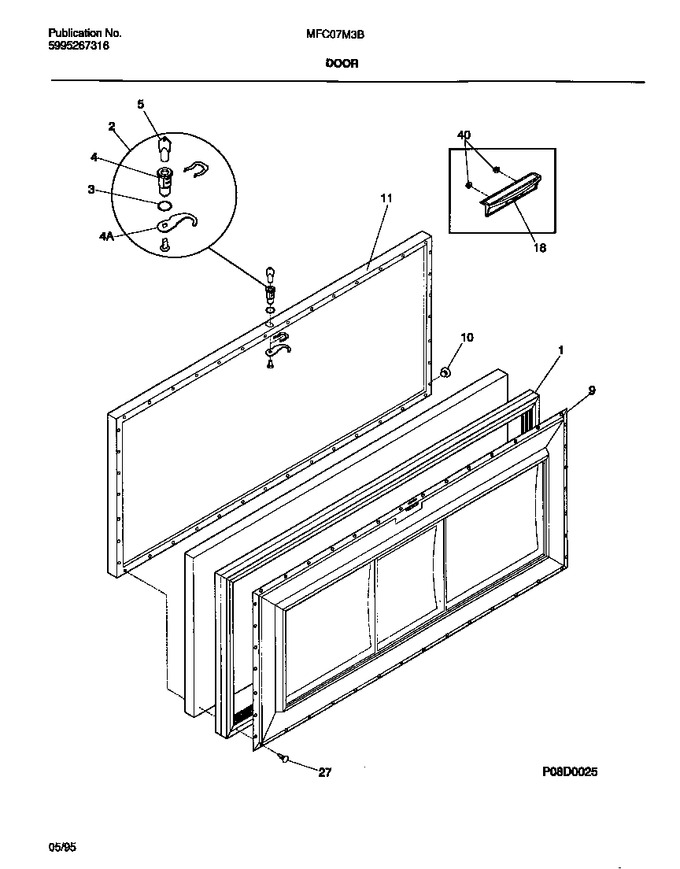

02 - Door
03 - Cabinet/control/shelves
04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3200867 | Gasket-door, White |
|
- | |||||
| 2 | 5303925107 | Lock Assy |
|
- | |||||
| 3 | 5300114366 | Washer |
|
- | |||||
| 4 | 5303283905 | Cylinder, Lock |
|
- | |||||
| 4 | 216078500 | Hook, Lock |
|
- | |||||
| 5 | 297147700 | Key Lock (Replaces: 5308037402) |
|
Immediately | $ 7.57 | ||||
| 9 | 216061600 | Panel-inner Lid, White |
|
$ 142.75 | |||||
| 10 | 216141101 | Plug Button |
|
$ 2.57 | |||||
| 11 | 5303925216 | Panel-outer Lid, White |
|
$ 327.92 | |||||
| 18 | 216205001 | Handle, White |
|
- | |||||
| 27 | 5303212828 | Screw, Panel |
|
$ 16.63 | |||||
| 40 | 5309948647 | Fastener, Handle |
|
- | |||||
| *71000 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 |
