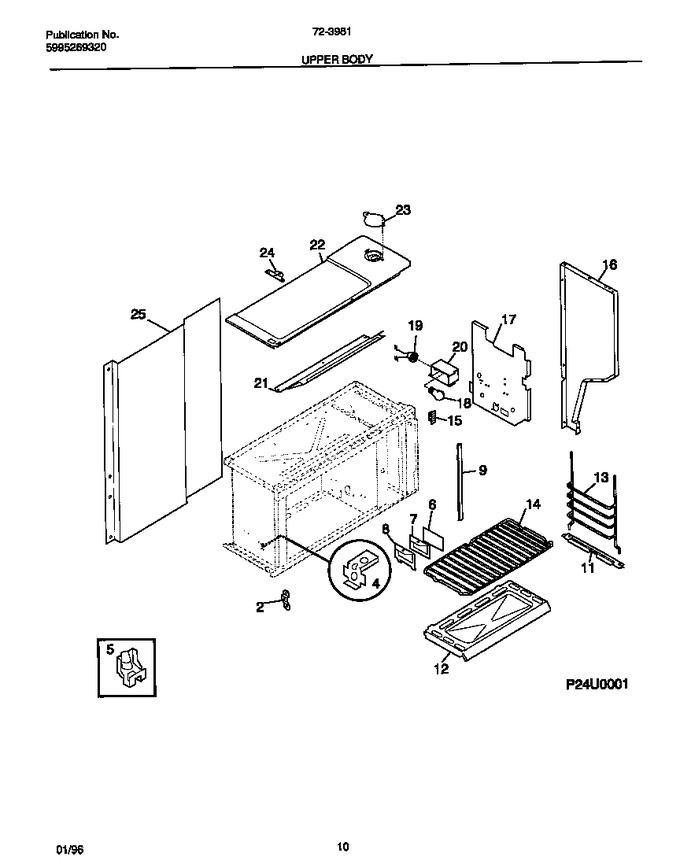

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3051166		Hinge-door		Appelez-nous	-
4	08011665		Plate-bottom Hinge		Appelez-nous	-
5	5303011805		Clip, Thermo Bulb		Appelez-nous	-
6	08011668		Glass-oven Light Lens		Appelez-nous	-
7	3200506		Gasket-oven Light		Appelez-nous	-
8	08011669		Cover-light, Upper		Appelez-nous	-
9	5303934092		Seal-door		Appelez-nous	-
11	3131616		Glide-oven Rack		Appelez-nous	-
12	3200488		Bottom-oven		Appelez-nous	-
13	08011674		Glide-oven Rack		Appelez-nous	-
14	08011675		Rack-oven, Flat		Appelez-nous	-
15	08011680		Catch-door		Appelez-nous	-
16	3051263		Panel-bodyside, White, Rh		Appelez-nous	-
16	5303269987		Panel-bodyside, White, Lh (not Illustrated)		Appelez-nous	-
17	5303208706		Shield-wool		Appelez-nous	-
18	40A15		Light Bulb/lamp   (Replaces: 5303013071)			Immediately	$ 1.98
19	3014073		Socket-light/lamp, Oven		Appelez-nous	-
20	5303290773		Box-light		Appelez-nous	-
21	3200505		Flue, Back		Appelez-nous	-
22	3131625		Panel-top, Upper		Appelez-nous	-
23	08067732		Cover-outlet		Appelez-nous	-
24	5303290130		Hinge-oven Door, (2)		Appelez-nous	-
25	3203082		Back-main		Appelez-nous	-
*05609	5303051818		Screw, Wave Guide/door Hinge, 8, 18 X 1/2		Appelez-nous	-
*05610	3200498		Insulation-wool		Appelez-nous	-
*05611	3200500		Bracket-connector		Appelez-nous	-
*05612	3200509		Insulation, Upper Ovn		Appelez-nous	-
*05613	3200511		Insulation, Wool		Appelez-nous	-
*05614	3200519		Retainer, Upper Ovn Brnr		Appelez-nous	-
*05615	3204440		Reflector, Aluminum Foil		Appelez-nous	-
*05616	5303283669		Insulation, Splasher		Appelez-nous	-
