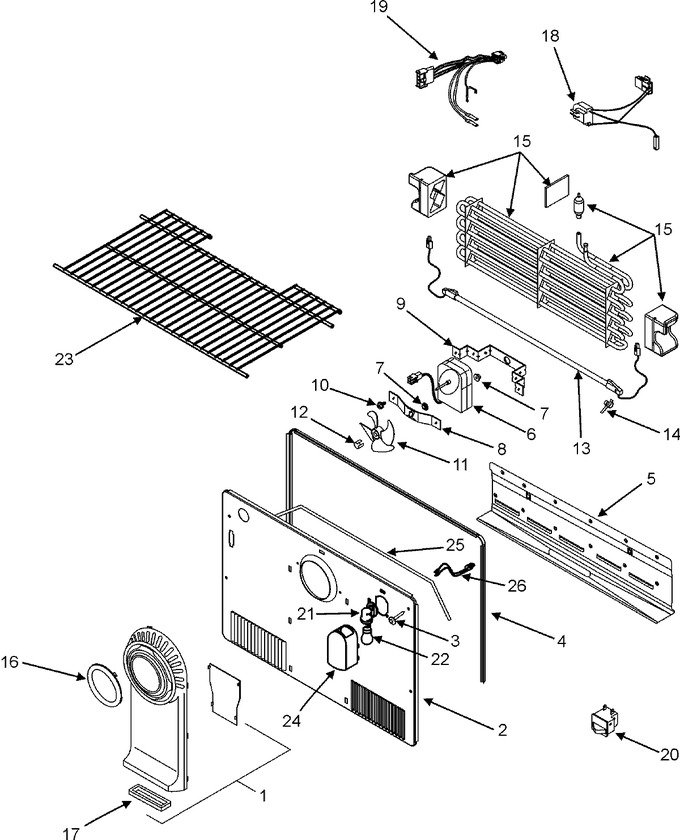

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	63001445		Tunnel Assy., Air	50			$ 5.06
2	63001653		Cover, Evaporator	50	Appelez-nous	-
3	2256637		Screw   (Replaces: 63001036)	50			$ 11.60
4	63001593		Gasket, Evaporator Cover	50	Appelez-nous	-
5	63001594		Tray, Drip	50	Appelez-nous	-
6	63001247		Motor, Evaporator Fan	50			$ 146.68
7	63001248		Bushing, Evaporator Fan	50	Appelez-nous	-
8	63001249		Retainer, Evaporator Fan	50	Appelez-nous	-
9	63001063		Bracket, Evaporator Fan	50	Appelez-nous	-
10	WP489399		Screw   (Replaces: 63001104)	50			$ 6.26
11	63001060		Blade, Evaporator Fan	50	Appelez-nous	-
12	63001061		Clip, Fan Blade	50	Appelez-nous	-
13	63001595		Heater, Defrost	50			$ 63.39
14	63001050		Clip, Defrost Heater	50	Appelez-nous	-
15	12002614		Kit, Evaporator	50			$ 232.58
16	63001446		Cover, Fan	50	Appelez-nous	-
17	63001429		Seal	50	Appelez-nous	-
18	63001599		Thermostat, Defrost (3 Wire)	50			$ 47.70
19	63001820		Wire Harness, Frz.	50	Appelez-nous	-
20	W11291138		Switch, Light   (Replaces: 63001030)	50		Immediately	$ 33.00
21	63001448		Receptacle, Bulb	50	Appelez-nous	-
22	W11679940		Bulb, Light   (Replaces: 63001035)	50		Immediately	$ 10.17
23	63001791		Shelf, Frz.	50	Appelez-nous	-
24	63001449		Cover, Light	50	Appelez-nous	-
25	63001592		Seal, Evaporator Cover	50	Appelez-nous	-
26	63001654		Wire Harness, Light	50	Appelez-nous	-
