SELECT A DIAGRAM

01 - Cover


02 - Door

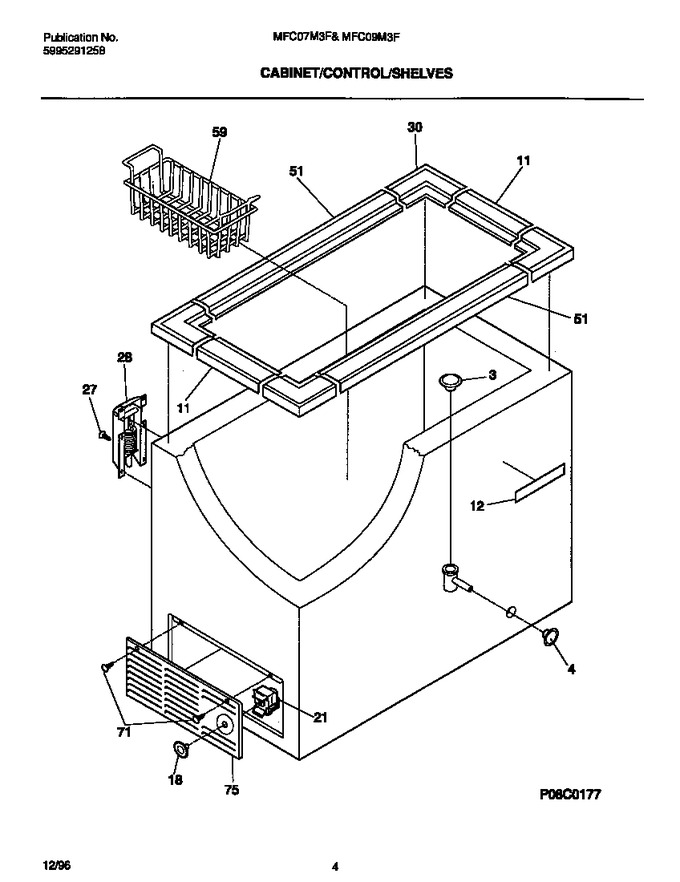

03 - Cabinet/control/shelves


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216297600		Plug-drain		Appelez-nous	-
4	216073900		Plug, Drain		Appelez-nous	-
11	216105600		Breaker-ends, White		Appelez-nous	-
12	216373000		Frame-nameplate				$ 4.04
18	216034505		Knob, Control, White		Appelez-nous	-
21	216356800		Control, Temperature		Appelez-nous	-
27	216337700		Screw Hwh 20-24 X .500 Swage, Swage, Hwh 20-24 X .500		Appelez-nous	-
28	216478800		Hinge Assy		Appelez-nous	-
30	216105500		Breaker-corners,white				$ 46.83
51	216117500		Breaker-hinge Side, White		Appelez-nous	-
59	216848200		Basket   (Replaces: 216078600)				$ 53.21
71	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
75	216329402		Panel-access,white		Appelez-nous	-
*56081	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46

    View Diagram in Separate Window       Print Part List
