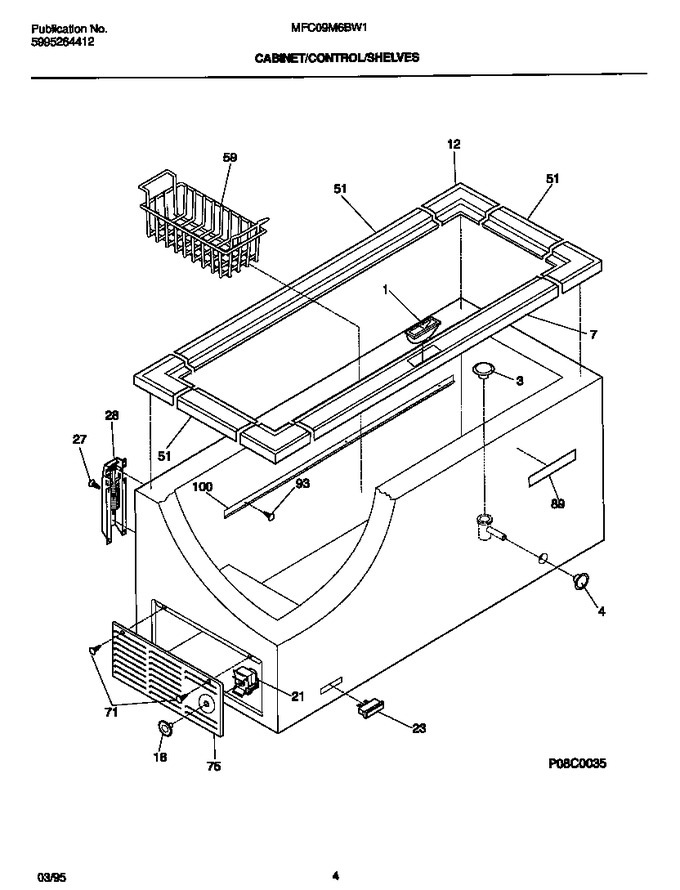

03 - Cabinet/control/shelves
04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 216117700 | Support Lock |
|
- | |||||
| 3 | 216297600 | Plug-drain |
|
- | |||||
| 4 | 216073900 | Plug, Drain |
|
- | |||||
| 7 | 216117600 | Breaker, Lock Side |
|
- | |||||
| 12 | 216105500 | Breaker, White, Corners |
|
$ 46.83 | |||||
| 18 | 216034510 | Knob-control |
|
- | |||||
| 21 | 216356800 | Control, Temperature |
|
- | |||||
| 23 | 06594648 | Signal Light, Amber |
|
- | |||||
| 27 | 5309950602 | Screw Hinge |
|
$ 5.30 | |||||
| 28 | 216119201 | Hinge Assy |
|
- | |||||
| 51 | 216117500 | Breakers, White, Hinge/side |
|
- | |||||
| 59 | 216848200 | Basket (Replaces: 216078600) |
|
$ 53.21 | |||||
| 71 | 08006547 | Screw |
|
- | |||||
| 75 | 216329402 | Panel-access,white |
|
- | |||||
| 89 | 215366301 | Frame - Nameplate,white |
|
- | |||||
| 93 | 216858001 | Screw (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 100 | 216081500 | Track,basket |
|
- | |||||
| *41521 | 216258400 | Basket,lower |
|
- | |||||
| *41522 | 5303321319 | Paint, Touch-up, White (Replaces: 5303305324) |
|
Immediately | $ 13.46 |
