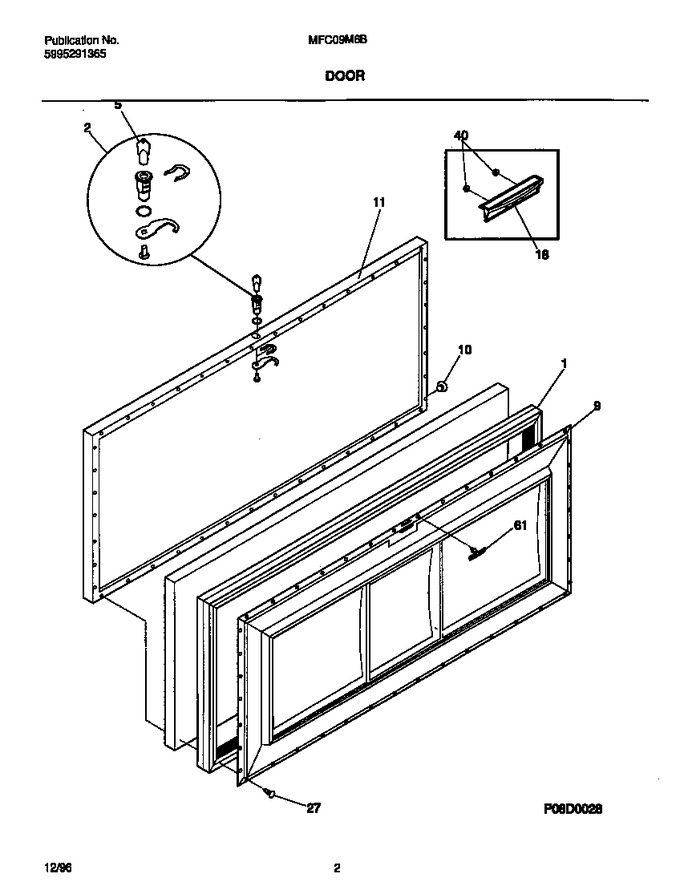

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 216480901 | Gasket-door,white |
|
$ 107.26 | |||||
| 2 | 5303925134 | Lock Assy |
|
- | |||||
| 5 | 297147700 | Key, Lock (Replaces: 216388700) |
|
Immediately | $ 7.57 | ||||
| 9 | 216061800 | Panel-inner Door/lid, White |
|
$ 165.64 | |||||
| 10 | 216141101 | Plug Button, White |
|
$ 2.57 | |||||
| 11 | 216117910 | Panel-outer Door/lid, White |
|
- | |||||
| 18 | 216205001 | Handle, White |
|
- | |||||
| 27 | 5303212828 | Screw, Panel |
|
$ 16.63 | |||||
| 40 | 5309948647 | Fastener, Handle |
|
- | |||||
| 61 | 5309948955 | Clip-panel |
|
$ 11.53 | |||||
| *10560 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 |
