SELECT A DIAGRAM
01 - Cover
02 - Door

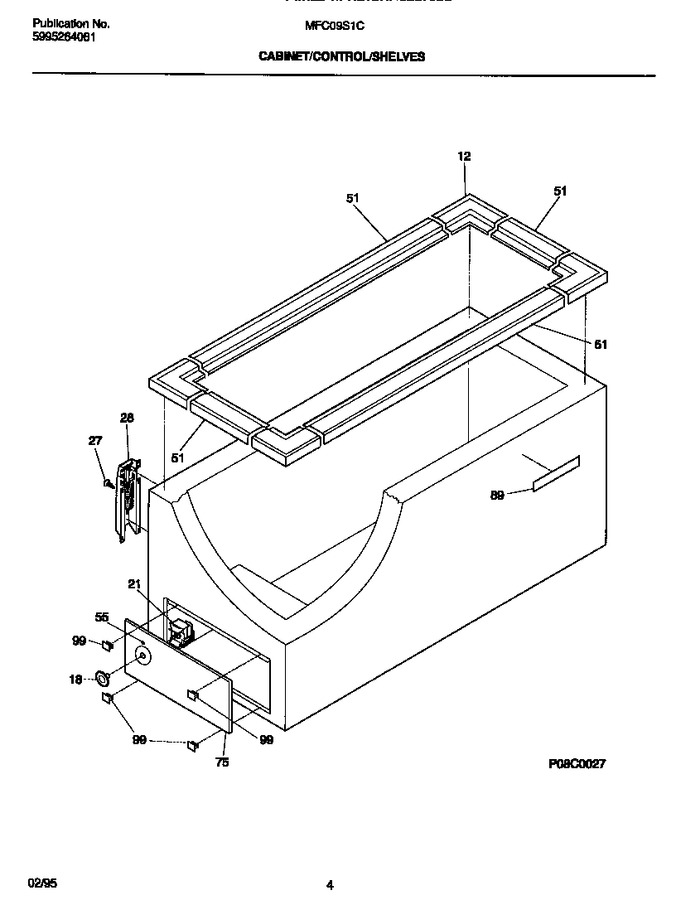

03 - Cabinet/control/shelves
04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 12 | 216105500 | Breaker, White, Corners |
|
$ 46.83 | |||||
| 18 | 216034510 | Knob-control |
|
- | |||||
| 21 | 216356800 | Control, Temperature |
|
- | |||||
| 27 | 5309950602 | Screw Hinge |
|
$ 5.30 | |||||
| 28 | 216119201 | Hinge Assy |
|
- | |||||
| 51 | 216117500 | Breakers |
|
- | |||||
| 55 | 5303208663 | Lens, Indicator, Cold Control |
|
- | |||||
| 75 | 216108200 | Panel-access, White |
|
- | |||||
| 89 | 215366301 | Frame - Nameplate,white |
|
- | |||||
| 99 | 5309950877 | Retainer, White, Access Panel |
|
- | |||||
| *55121 | 5303321319 | Paint, Touch-up, White (Replaces: 5303305324) |
|
Immediately | $ 13.46 |
