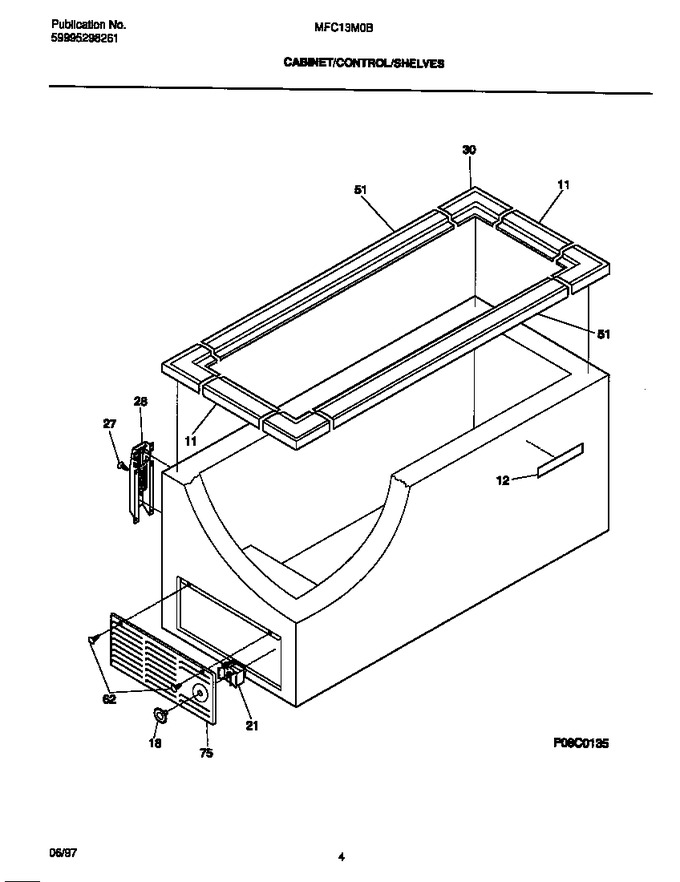

03 - Cabinet/control/shelves
04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 216110800 | Breaker,white ,ends |
|
- | |||||
| 12 | 216373000 | Frame-nameplate |
|
$ 4.04 | |||||
| 18 | 216034505 | Knob, Control, White |
|
- | |||||
| 21 | 216356800 | Control, Temperature |
|
- | |||||
| 27 | 216337700 | Screw, Swage, Hwh 20-24 X .500 |
|
- | |||||
| 28 | 216039600 | Hinge |
|
- | |||||
| 30 | 216110700 | Breaker,white ,corners |
|
$ 28.45 | |||||
| 51 | 5303925185 | Breaker-hinge\front, White |
|
- | |||||
| 62 | 131168200 | Screw, 8-18 X 0.31 |
|
Immediately | $ 14.18 | ||||
| 75 | 216034301 | Access Panel |
|
$ 103.01 | |||||
| *69841 | 09948773 | Insulation, Drain Tube |
|
$ 12.60 | |||||
| *69842 | 5303321319 | Paint, Touch-up, White (Replaces: 5303305324) |
|
Immediately | $ 13.46 |
