SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet


07 - System

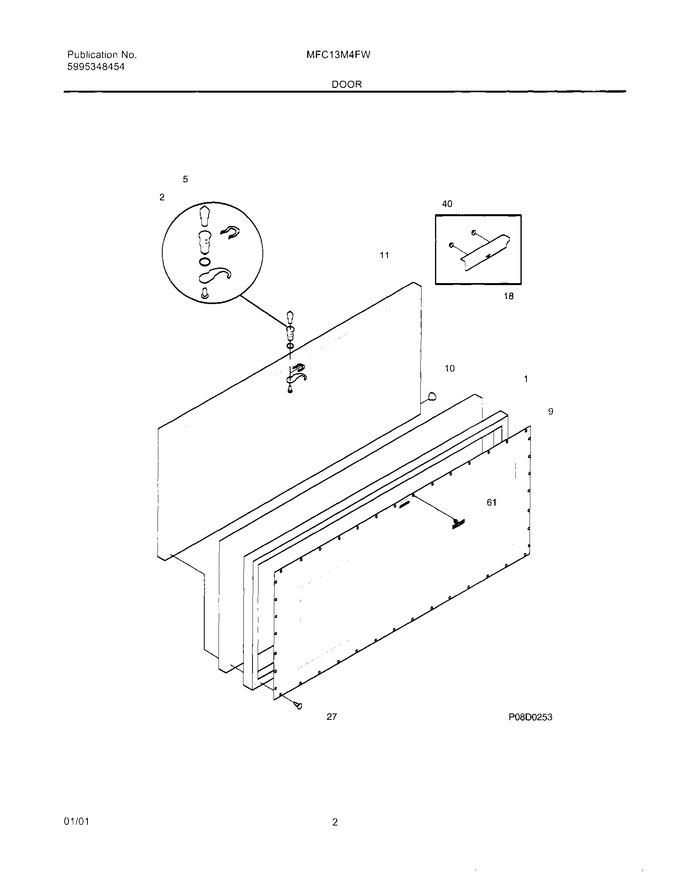

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216481101		Gasket-door, White				$ 224.81
2	5303925107		Lock Assy		Appelez-nous	-
5	297147700		Key, Lock   (Replaces: 216702900)			Immediately	$ 7.57
9	216056904		Panel-inner Lid, White		Appelez-nous	-
10	216141101		Plug Button, White				$ 2.57
11	216129804		Panel-outer Door,white		Appelez-nous	-
18	216205001		Handle, White		Appelez-nous	-
27	5303212828		Clip,panel				$ 16.63
40	5309948647		Fastener, Handle		Appelez-nous	-
61	5309948955		Clip-panel				$ 11.53
NI	131420300		Screw, Cr Truss Head, 8-18ab X 0.750				$ 13.46
NI	5303917276		Insulation				$ 330.91

    View Diagram in Separate Window       Print Part List
