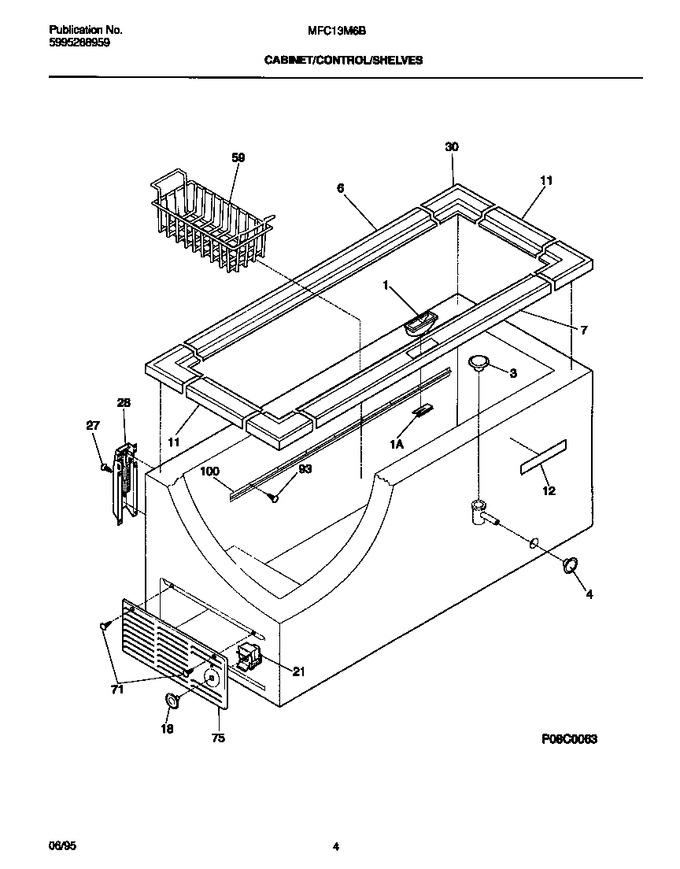

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216080800		Support, Lock		Appelez-nous	-
1	5303208488		Latch, Door		Appelez-nous	-
3	5306593887		Plug-drain		Appelez-nous	-
4	216073900		Plug, Drain		Appelez-nous	-
6	5303925185		Breaker, Hinge Side		Appelez-nous	-
7	5303925186		Breaker, Lock Side		Appelez-nous	-
11	216110800		Breaker,white ,ends		Appelez-nous	-
12	215366301		Frame - Nameplate,white		Appelez-nous	-
18	216034505		Knob, Control, White		Appelez-nous	-
21	5304496560		Control Temperature   (Replaces: 216230400)				$ 49.62
27	5309950602		Screw Hinge				$ 5.30
28	297321900		Hinge Assy   (Replaces: 5303925006)				$ 90.01
30	216110700		Breaker,white ,corners				$ 28.45
59	216080700		Basket, Lower (not Illustrated)				$ 84.70
59	216080300		Basket, Upper		Appelez-nous	-
71	5303302714		Screw, 8, 18 X 3/4, (2)		Appelez-nous	-
75	216022700		Panel, Access, White		Appelez-nous	-
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
100	216081500		Track,basket		Appelez-nous	-
*03001	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
