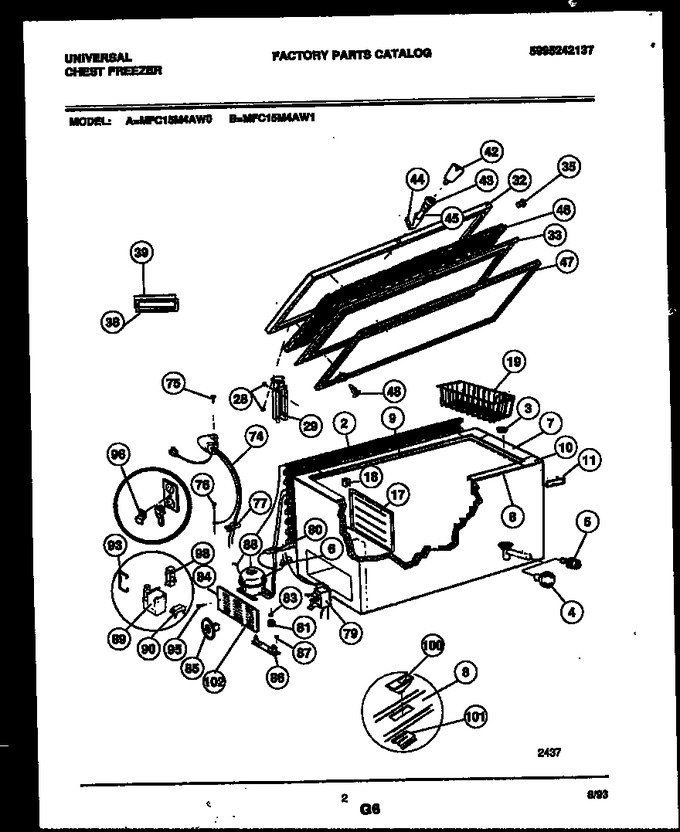

02 - Chest Freezer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303280307 | Condenser (not Original Equipment-service Replacement On |
|
$ 640.71 | |||||
| 3 | 216208300 | Plug-drain Liner |
|
- | |||||
| 4 | 5300128045 | Plug-drain Shell |
|
- | |||||
| 5 | 06594053 | Adapter, Hose |
|
- | |||||
| 6 | 08016808 | Grommet |
|
- | |||||
| 7 | 216110802 | Breaker Ends |
|
- | |||||
| 8 | 216111602 | Breaker Front |
|
- | |||||
| 9 | 216111002 | Breaker Rear |
|
- | |||||
| 10 | 216110702 | Breaker-corners |
|
- | |||||
| 11 | 5303285577 | Frame |
|
- | |||||
| 17 | 216128200 | Divider-drain Pan |
|
- | |||||
| 18 | 5306594584 | Supports Divider |
|
$ 19.80 | |||||
| 19 | 216080300 | Basket (1) |
|
- | |||||
| 28 | 5309950602 | Screw Hinge |
|
$ 5.30 | |||||
| 29 | 297321900 | Hinge (Replaces: 216035200) |
|
$ 90.01 | |||||
| 32 | 216129901 | Lid-panel-white |
|
- | |||||
| 33 | 216058104 | Panel-inner Lid |
|
- | |||||
| 35 | 216141101 | Plug |
|
$ 2.57 | |||||
| 38 | 216140204 | Handle-brown |
|
- | |||||
| 39 | 08009392 | Gasket, White |
|
- | |||||
| 42 | 297147700 | Key Lock (Replaces: 5308037402) |
|
Immediately | $ 7.57 | ||||
| 43 | 5303925107 | Lock-complete |
|
- | |||||
| 44 | 5300300791 | Hook |
|
- | |||||
| 45 | 5300114366 | Washer-lock |
|
- | |||||
| 46 | 5300128901 | Insulation Lid |
|
- | |||||
| 47 | 216079901 | Gasket Lid-brown |
|
- | |||||
| 48 | 5303212828 | Clip-panel (40) |
|
$ 16.63 | |||||
| 74 | 216089600 | Wiring Harn W/ Pwr Cord |
|
- | |||||
| 75 | 08009412 | Screw |
|
- | |||||
| 76 | 08009412 | Screw |
|
- | |||||
| 77 | 5303212614 | Clip Wires |
|
$ 2.88 | |||||
| 79 | 5304496560 | Control Temp. (Replaces: 216230400) |
|
$ 49.62 | |||||
| 80 | 5303305677 | Drier (Replaces: 5308000027) |
|
Immediately | $ 31.67 | ||||
| 81 | 215175000 | Grommet Compr (4) |
|
- | |||||
| 83 | 216056400 | Clip Compr (4) |
|
- | |||||
| 84 | 216022700 | Access Panel |
|
- | |||||
| 85 | 216034505 | Knob-control |
|
- | |||||
| 86 | 5303212615 | Support Compr (2) |
|
- | |||||
| 87 | 08016776 | Screw-support (2) |
|
- | |||||
| 88 | 216120800 | Compressor |
|
- | |||||
| 89 | 216008900 | Relay |
|
- | |||||
| 90 | 5303206816 | Overload |
|
- | |||||
| 93 | 216147800 | Clamp Cover |
|
- | |||||
| 95 | 216858001 | Screw-access Panel (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 96 | 08016777 | Retainer-power Cord (not Original Equipment-customer Pur |
|
- | |||||
| 98 | 3017761 | Run Capacitor |
|
- | |||||
| 100 | 5303211223 | Latch |
|
- | |||||
| 101 | 216080800 | Support-latch |
|
- | |||||
| 102 | 5303208663 | Plug-indicator |
|
- | |||||
| 88A | 5303294326 | Wire-ground (non-illustrated) |
|
- |
