SELECT A DIAGRAM

01 - Cover

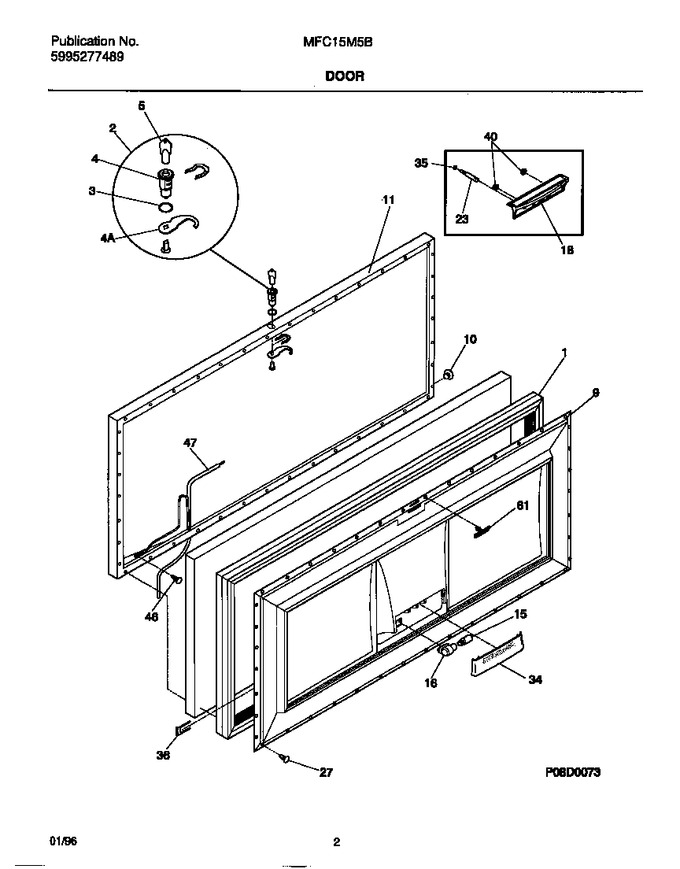

02 - Door


03 - Cabinet/control/shelves


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216481211		Gasket Lid-white   (Replaces: 216079900)				$ 204.03
2	5303925107		Lock Assy		Appelez-nous	-
3	5300114366		Washer		Appelez-nous	-
4	5300300791		Hook, Lock		Appelez-nous	-
4	5303283905		Cylinder, Lock		Appelez-nous	-
5	297147700		Key, Lock   (Replaces: 216388700)			Immediately	$ 7.57
9	216057704		Panel-inner Lid-white				$ 71.65
10	216141101		Plug Button, White				$ 2.57
11	216129911		Panel-outer Door, White		Appelez-nous	-
15	5304517886		Light Bulb/lamp   (Replaces: 216222700)			Immediately	$ 73.06
16	216039700		Socket, Light/lamp		Appelez-nous	-
18	216205004		Handle,white		Appelez-nous	-
23	216212700		Light-signal,amber		Appelez-nous	-
27	5303212828		Screw, Panel				$ 16.63
34	216160400		Shield-light		Appelez-nous	-
35	5303297015		Washer, Signal Light		Appelez-nous	-
36	5306599968		Plate, Backup, Light Switch		Appelez-nous	-
40	5309948647		Fastener, Handle		Appelez-nous	-
46	08037851		Screw, Ph Type Ab, 8, 32 X 1/2, Wiring Harness				$ 3.57
47	216040700		Harness, Wiring, Lid		Appelez-nous	-
61	5309948955		Clip-panel				$ 11.53

    View Diagram in Separate Window       Print Part List
