Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 61002665 Liner, F.f. Door 10 Appelez-nous -
1 65275-5 Screw 10 Appelez-nous -
2 61002666 Door, Dairy 10 Appelez-nous -
3 67215-2 Tray, Egg 10 Appelez-nous -
4 61002667 Bucket, Tip Out 10 Appelez-nous -
5 61002595 Shelf, Pick-off 10 Appelez-nous -
6 61002274 Organizer, Shelf 10 Appelez-nous -
7 WP61004010 Seal, F.f. Door (wht)   (Replaces: 61002056) 10 Special Order $ 296.04

8 61002273 Retainer, Bottle 10 Appelez-nous -
9 61002760 Organizer, Dairy Compt. 10 Appelez-nous -
10 61002668 Shelf, P.o. Dairy 10 Appelez-nous -
11 61002761 Drawer Assy., Utility 10 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

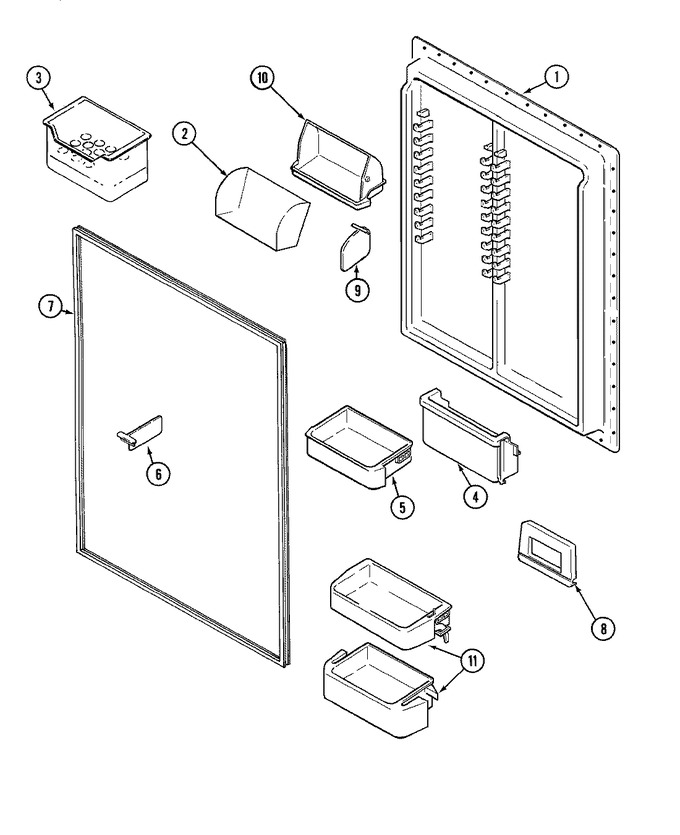

Diagram for MTF2456AEA
