SELECT A DIAGRAM

01 - Cover


02 - Door

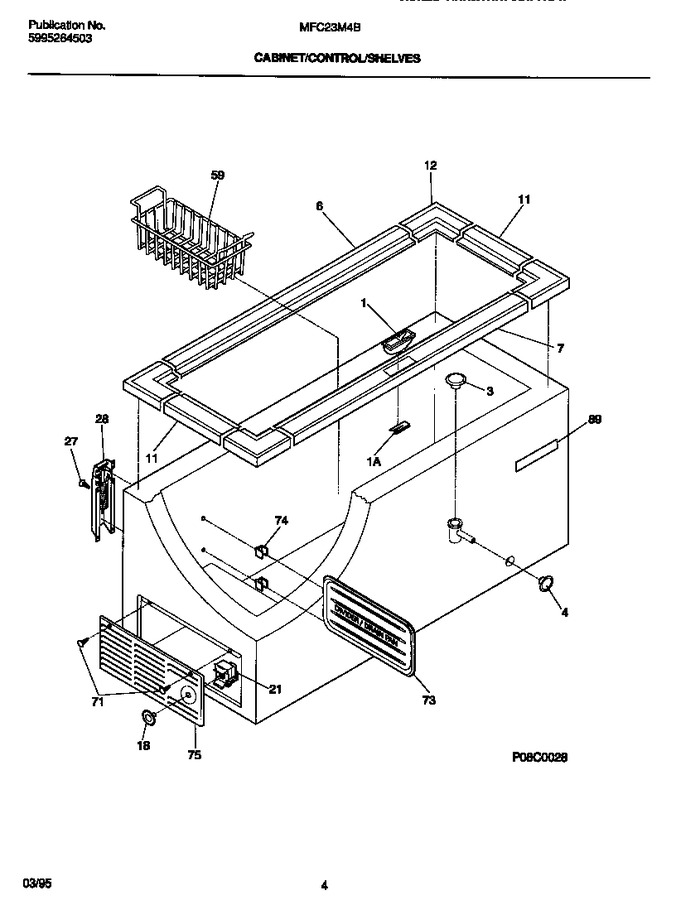

03 - Cabinet/control/shelves


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303208488		Latch, Door		Appelez-nous	-
1	216080800		Support, Lock		Appelez-nous	-
3	216297600		Plug-drain		Appelez-nous	-
4	216073900		Plug, Drain		Appelez-nous	-
6	5303925185		Breaker, Hinge Side		Appelez-nous	-
7	5303925186		Breaker, Lock Side		Appelez-nous	-
11	216110800		Breaker,white ,ends		Appelez-nous	-
12	216110700		Breaker,white ,corners				$ 28.45
18	216034510		Knob-control		Appelez-nous	-
21	5304496560		Control Temperature   (Replaces: 5303212610)				$ 49.62
27	5309950602		Screw Hinge				$ 5.30
28	297321900		Hinge Assy   (Replaces: 5303925006)				$ 90.01
59	216080300		Basket		Appelez-nous	-
71	5303302714		Screw, 8, 18 X 3/4, (2)		Appelez-nous	-
73	216128200		Divider-drain Pan		Appelez-nous	-
74	5306594584		Support, Shelf				$ 19.80
75	216022700		Panel, Access, White		Appelez-nous	-
89	215366301		Frame - Nameplate,white		Appelez-nous	-
*19641	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46

    View Diagram in Separate Window       Print Part List
