SELECT A DIAGRAM

01 - Cover


02 - Door


03 - Cabinet/control/shelves

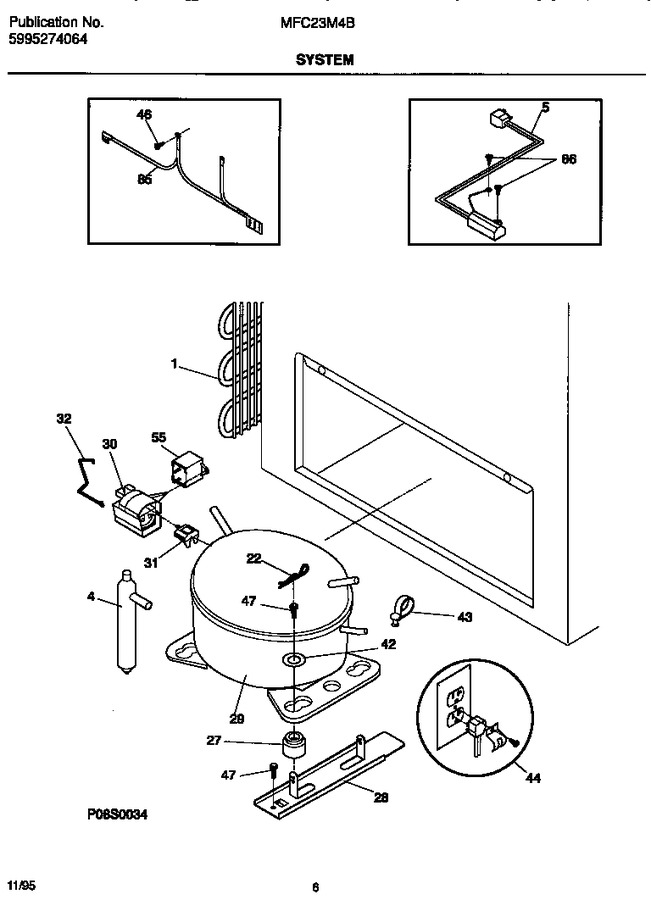

04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300300173		Condenser		Appelez-nous	-
4	5303305677		Drier, Filter   (Replaces: 216099900)			Immediately	$ 31.67
5	216089600		Harness, Wiring, Compressor		Appelez-nous	-
22	216056400		Clip, Spring Mtg		Appelez-nous	-
27	218513300		Grommet-compr Mtg				$ 42.53
28	5303212615		Support, Compressor		Appelez-nous	-
29	5303916022		Compressor-w/ Elec, Service		Appelez-nous	-
30	216008900		Starter-ptc		Appelez-nous	-
31	5303276514		Overload				$ 64.94
32	215012000		Wire-bale				$ 2.63
42	5303298960		Spacer, Compressor		Appelez-nous	-
43	5303212614		Clip Harness				$ 2.88
44	08016777		Clamp, Pwr Cord Assy		Appelez-nous	-
46	08037851		Screw, Ph Type Ab, 8, 32 X 1/2, Wiring Harness				$ 3.57
47	08016776		Screw-compresor,ind Hwh Type T ,10-32 X 1/2,support		Appelez-nous	-
55	5304464438		Capacitor-run   (Replaces: 216236200)			Immediately	$ 35.38
85	5303294326		Wire Ground, Compressor		Appelez-nous	-
86	216036600		Screw, Rwhd (gx, Ca), 8, 32 X 1/2		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
