SELECT A DIAGRAM

01 - Cover


02 - Door

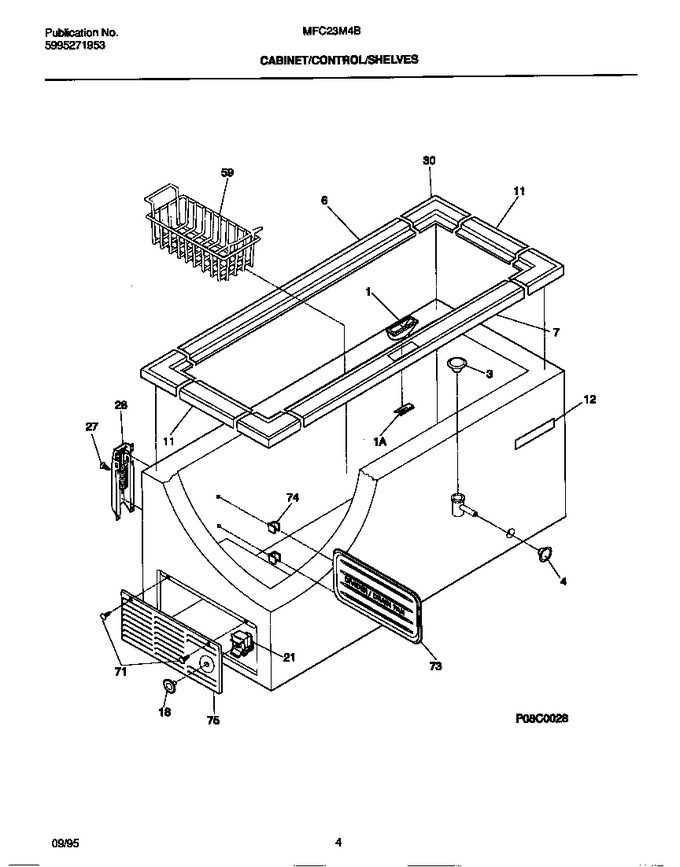

03 - Cabinet/control/shelves


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216080800		Support, Lock		Appelez-nous	-
1	5303208488		Latch, Door		Appelez-nous	-
3	216297600		Plug-drain		Appelez-nous	-
4	216073900		Plug, Drain		Appelez-nous	-
6	216111300		Breaker, Hinge Side		Appelez-nous	-
7	216111900		Breaker, Lock Side		Appelez-nous	-
11	216110800		Breaker,white ,ends		Appelez-nous	-
12	215366301		Frame - Nameplate,white		Appelez-nous	-
18	216034510		Knob-control		Appelez-nous	-
21	5304496560		Control Temperature   (Replaces: 216230400)				$ 49.62
27	5309950602		Screw Hinge				$ 5.30
28	216035500		Hinge		Appelez-nous	-
30	216110700		Breaker,white ,corners				$ 28.45
59	216080300		Basket, Upper, (1)		Appelez-nous	-
71	5303302714		Screw, 8, 18 X 3/4, (2)		Appelez-nous	-
73	216128200		Divider-drain Pan		Appelez-nous	-
74	5306594584		Support, Shelf				$ 19.80
75	216034301		Access Panel				$ 103.01
*30521	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46

    View Diagram in Separate Window       Print Part List
