SELECT A DIAGRAM

01 - Cover


02 - Door

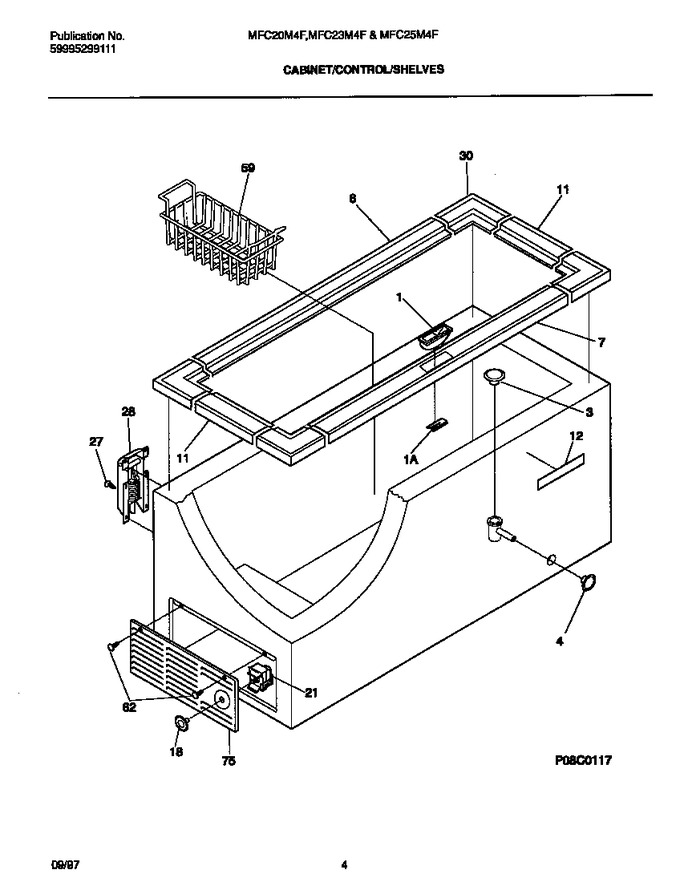

03 - Cabinet/control/shelves


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216080800		Support, Lock		Appelez-nous	-
1	5303208488		Latch, Door		Appelez-nous	-
3	216297600		Plug-drain		Appelez-nous	-
4	216073900		Plug, Drain		Appelez-nous	-
6	216111300		Breaker, Hinge Side		Appelez-nous	-
7	216111900		Breaker, Lock Side		Appelez-nous	-
11	216110800		Breaker,white ,ends		Appelez-nous	-
12	216373000		Frame-nameplate				$ 4.04
18	216034505		Knob, Control, White		Appelez-nous	-
21	216532100		Control-temperature				$ 9.70
27	216337700		Screw, Swage, Hwh 20-24 X .500		Appelez-nous	-
28	216035500		Hinge		Appelez-nous	-
30	216110700		Breaker,white ,corners				$ 28.45
59	216080300		Basket		Appelez-nous	-
62	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
75	216034300		Panel-access, White		Appelez-nous	-
*08441	09948773		Insulation, Drain Tube				$ 12.60
*08442	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46

    View Diagram in Separate Window       Print Part List
