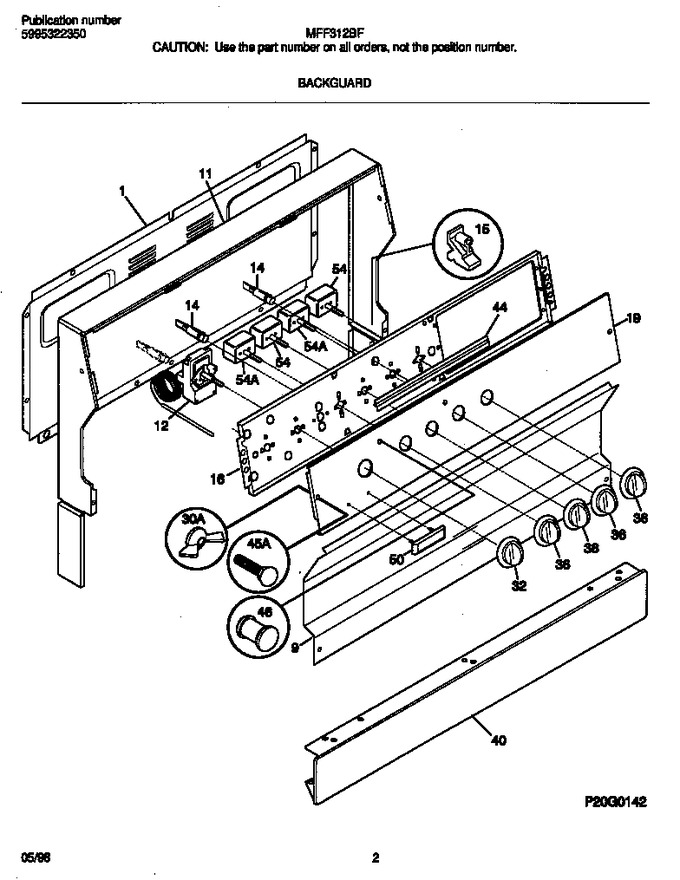

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131123		Shield-backguard,rear Wall		Appelez-nous	-
9	316043601		Trim-splasher, White		Appelez-nous	-
11	316057002		Trim-wrapper		Appelez-nous	-
11	316083715		Trim-wrapper		Appelez-nous	-
12	5303212745		Thermostat-oven		Appelez-nous	-
14	3201726		Light/lamp, Indicator, Blue, 250 V		Appelez-nous	-
15	5303131237		Support-backguard,(2)		Appelez-nous	-
16	316042602		Plate, Instrument Mtg		Appelez-nous	-
19	316034127		Panel-bg E Etd Nb Blk		Appelez-nous	-
20	316096002		Clock/timer		Appelez-nous	-
24	5304527841		Switch-rocker, Oven Light, Black   (Replaces: 316005602)			Immediately	$ 11.38
30	316064300		Nut,nylon		Appelez-nous	-
32	316016803		Knob-thermostat		Appelez-nous	-
36	316016902		Knob-control, Infinite Sw		Appelez-nous	-
40	316064009		Panel-manifold,black		Appelez-nous	-
44	3131468		Bracket, Backguard		Appelez-nous	-
45	316056902		Bolt-fastener, Nylon		Appelez-nous	-
46	316065801		Lens-light/lamp,indicator ,red		Appelez-nous	-
50	316096900		Bezel,nameplate ,black				$ 15.38
54	5303285143		Switch, 8`` Element		Appelez-nous	-
54	5303935086		Switch-6`` Element   (Replaces: 5303285142)			Immediately	$ 51.95
*62481	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*62482	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*62484	5303272555		Clip-backguard		Appelez-nous	-
29A	5303272305		Button-selector, Clock/timer, Black				$ 38.80
29B	5303272306		Push Button,clock Set ,black ,(2)		Appelez-nous	-
