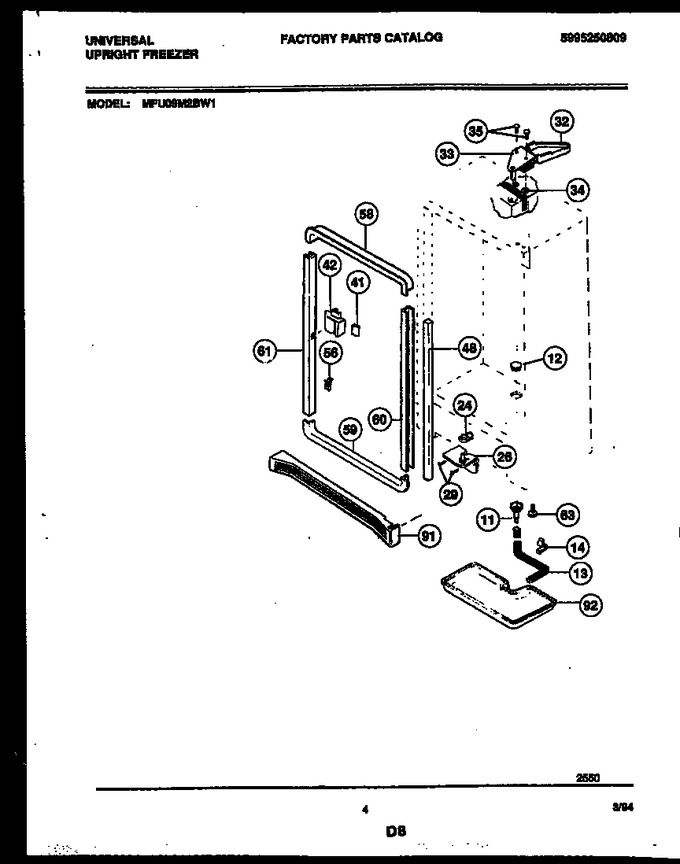

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 5304511843 | Drain (Replaces: 5308005500) |
|
$ 13.74 | |||||
| 12 | 5306593887 | Plug-drain |
|
- | |||||
| 13 | 216269600 | Hose-drain |
|
- | |||||
| 14 | 216273000 | Clip, Drain Hose |
|
$ 22.42 | |||||
| 24 | 5303210424 | Ramp, Door Closer |
|
- | |||||
| 26 | 216247400 | Hinge-bottom |
|
- | |||||
| 29 | 154518001 | Screw-bottom Hinge (Replaces: 5303205738) |
|
$ 10.54 | |||||
| 32 | 5303212912 | Cover, Hinge-white |
|
- | |||||
| 33 | 5303212935 | Hinge, Top |
|
- | |||||
| 34 | 5303294372 | Nut Insert |
|
$ 43.68 | |||||
| 35 | 5303212937 | Screw-top Hinge |
|
- | |||||
| 41 | 216013700 | Clip Lock |
|
- | |||||
| 42 | 216013600 | Support, Lock |
|
- | |||||
| 47 | 09950831 | Insulation |
|
- | |||||
| 56 | 06594680 | Clip, Breaker |
|
- | |||||
| 58 | 216073100 | Breaker-top |
|
- | |||||
| 59 | 216073000 | Breaker-bottom |
|
- | |||||
| 60 | 216102600 | Breaker-hinge |
|
- | |||||
| 61 | 216102700 | Breaker-lock Side |
|
- | |||||
| 63 | 205363701 | Leveling Leg Adj. (4) |
|
- |
