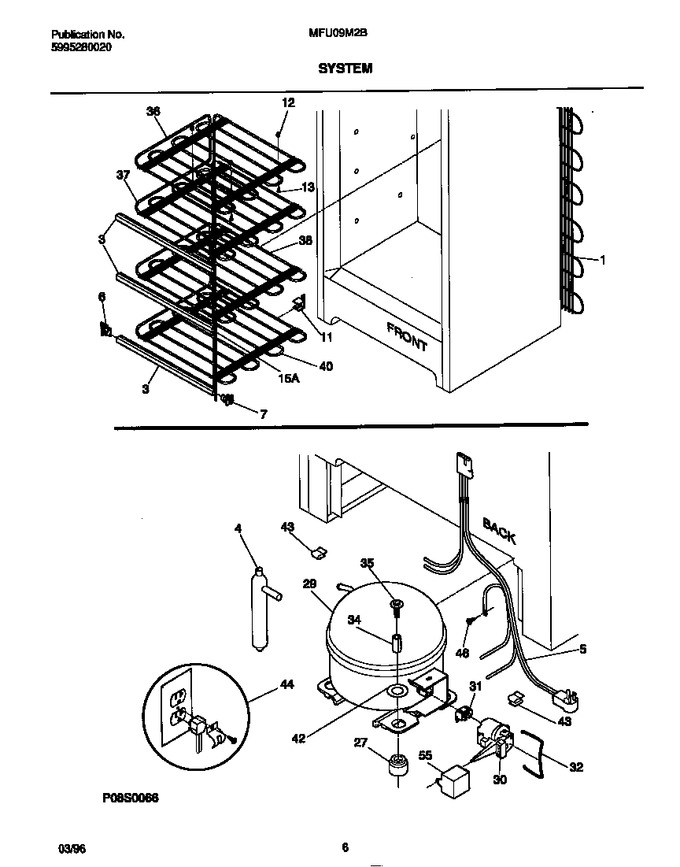

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303304537		Condenser		Appelez-nous	-
3	216097700		Trim-shelf,evaporator		Appelez-nous	-
4	5303305677		Drier-filter			Immediately	$ 31.67
6	297001600		Support-shelf,front Lh   (Replaces: 3091418)				$ 18.08
7	297001500		Support, Shelf, Front Rh   (Replaces: 08037928)				$ 18.08
11	216225600		Support-shelf, Rear		Appelez-nous	-
12	216225700		Grommet-spacer				$ 7.77
13	216138900		Screw,hex Sems ,8-18ab X 1.00 ,evap				$ 3.31
15	216385600		Heat Exchanger		Appelez-nous	-
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
29	5300186041		Compressor W/elec, Service		Appelez-nous	-
30	216008900		Starter-ptc		Appelez-nous	-
31	5303206885		Overload Protector				$ 119.23
32	216147800		Wire-bale		Appelez-nous	-
34	5306594529		Sleeve-compressor				$ 10.34
35	5303272328		Screw, Lnd Hex Sems, 1/4-28 Unfx, Compressor				$ 10.34
36	216069300		Grid-top Evaporator				$ 160.39
37	216069400		Shelf-top Evaporator		Appelez-nous	-
38	216069500		Shelf-middle Evaporator		Appelez-nous	-
40	216069600		Shelf-bottom Evaporator		Appelez-nous	-
43	5303212614		Clip Harness				$ 2.88
44	08016777		Clamp, Pwr Cord Assy		Appelez-nous	-
46	08037851		Screw, Ph Type Ab, 8, 32 X 1/2, Wiring Harness				$ 3.57
55	5304464438		Capacitor-run   (Replaces: 216236300)			Immediately	$ 35.38
