Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5304507203 Gasket-door   (Replaces: 216522300) Special Order $ 182.71

9 216527205 Panel-inner Door,frzr Appelez-nous -
11 216564201 Panel-outer Door,white Appelez-nous -
12 216373000 Frame-nameplate Special Order $ 4.04

13 08016354 Door Stop Special Order $ 36.07

14 5303313518 Washer, Sealing Appelez-nous -
21 08005520 Screw-door Stop Appelez-nous -
22 297006800 Bearing-hinge, Btm   (Replaces: 216503200) Special Order $ 12.29

22 216443600 Bearing Special Order $ 0.68

25 216022800 Screw, Washer Head, 8, 18 X 1/2 Appelez-nous -
26 216524400 Gasket-secondary Appelez-nous -
27 5303212828 Clip,panel Special Order $ 16.63

28 216523500 Rack-shelf,wide ,white Appelez-nous -
32 5309950074 Valve, Breather Special Order $ 12.48

64 216403700 Plug-button, Base Door Special Order $ 58.12

93 216858001 Screw   (Replaces: 5303161215) In-Stock Immediately $ 10.85


    View Diagram in Separate Window     Print Icon   Print Part List

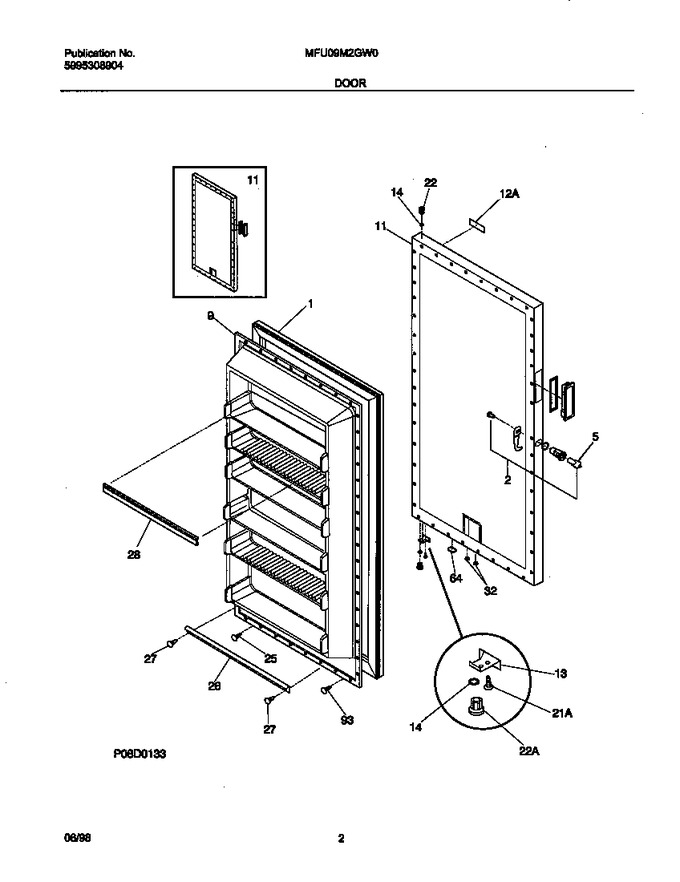

Diagram for MFU09M2GW0
