Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 216011303 Panel-door-white Appelez-nous -
2 216140200 Handle-door-white Appelez-nous -
3 08009392 Gasket Handle Appelez-nous -
4 216063600 Panel-inner-white Appelez-nous -
5 215366301 Frame-nameplate Appelez-nous -
6 09950831 Insulation Appelez-nous -
7 5303210403 Bearing, Bottom Appelez-nous -
8 5303925197 Bearing-top Special Order $ 23.73

9 5300091170 Reinforcement, Door Stop Appelez-nous -
10 08016354 Door Stop Special Order $ 36.07

11 08005520 Screw-door Stop Appelez-nous -
12 5309950074 Valve Breather (2) Special Order $ 12.48

13 5303212700 Air Duct Breather Appelez-nous -
14 5303007739 Insulation, Door Appelez-nous -
15 08037981 Wire Adjusting (2) Appelez-nous -
16 05879859 Bracket Appelez-nous -
17 5300057906 Screw, Bracket (2) Appelez-nous -
18 09950839 Washer, Bracket (2) Appelez-nous -
19 3206240 Gasket Door Special Order $ 287.18

20 216858001 Screw-panel (24)   (Replaces: 5303161215) In-Stock Immediately $ 10.85

21 216022800 Screw-panel (16) Appelez-nous -
22 5303300817 Gasket Appelez-nous -
23 5303212828 Clip, Gasket (5) Special Order $ 16.63


    View Diagram in Separate Window     Print Icon   Print Part List

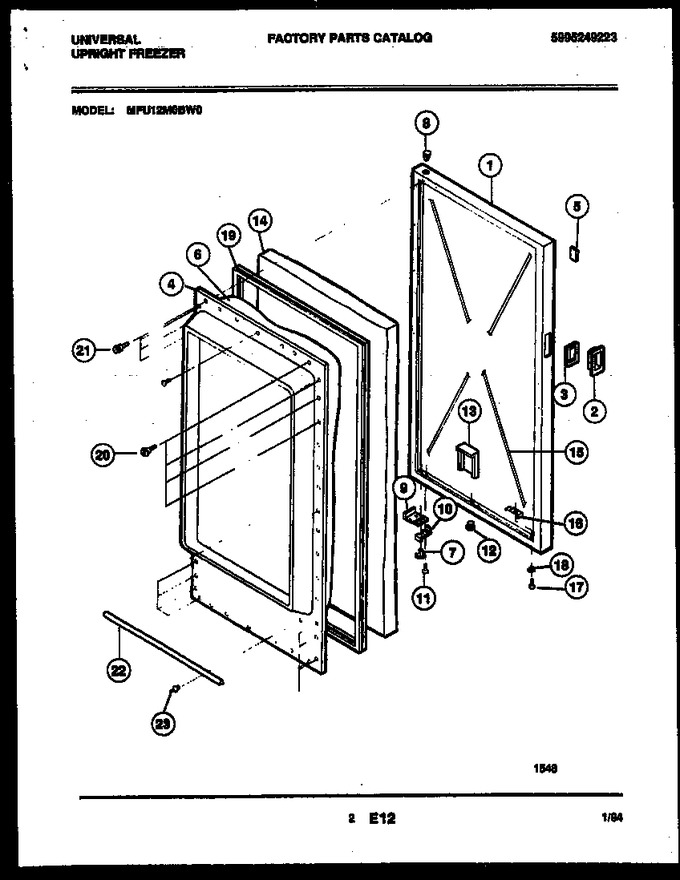

Diagram for MFU12M0BW0
