SELECT A DIAGRAM

02 - Door Parts


03 - Cabinet Parts


04 - System And Electrical Parts

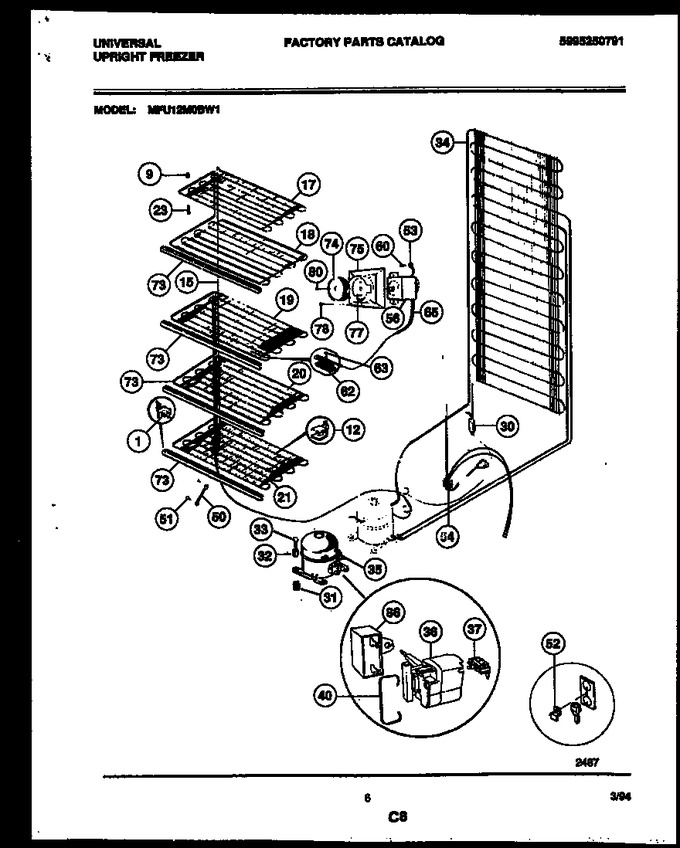

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	297001600		Support Front-lh (3)   (Replaces: 3091418)				$ 18.08
9	216225700		Spcr-top Grid-front (3)				$ 7.77
12	216225600		Support Rear (6)		Appelez-nous	-
15	5308010744		Heat Exchanger		Appelez-nous	-
17	216069700		Top Grid		Appelez-nous	-
18	216069800		First Shelf		Appelez-nous	-
19	216069900		Second Shelf		Appelez-nous	-
21	216070000		Bottom Shelf				$ 99.23
23	216225700		Screw-top Grid (3)				$ 7.77
30	5303305677		Drier-filter   (Replaces: 5308000027)			Immediately	$ 31.67
31	216498900		Grommet (4)   (Replaces: 5308002681)				$ 13.01
32	5306594529		Sleeve (3)				$ 10.34
33	5303272328		Screw (3)				$ 10.34
34	5300123788		Condenser				$ 635.80
35	216138400		Compressor		Appelez-nous	-
36	216008900		Relay		Appelez-nous	-
37	5303206885		Overload				$ 119.23
40	215012000		Clamp, Cover				$ 2.63
50	06594651		Wire, Ground		Appelez-nous	-
51	08037851		Screw				$ 3.57
52	08016777		Assy Clamp-service Cord		Appelez-nous	-
53	5300125347		Ground Wire		Appelez-nous	-
54	216232800		Wiring Harness W/power Cord		Appelez-nous	-
56	216260400		Control-temperature				$ 178.23
60	08009412		Screw		Appelez-nous	-
62	08037931		Clamp-capillary		Appelez-nous	-
63	5300052943		Screw, Clamp				$ 5.30
65	5308037932		Sleeve, Capillary Tube		Appelez-nous	-
70	5303212614		Clip Harness				$ 2.88
73	5304509722		Front-shelf   (Replaces: 216097800)				$ 28.20
74	216008602		Knob-control		Appelez-nous	-
75	5303288184		Housing Control		Appelez-nous	-
77	08003539		Screw Control To Cover		Appelez-nous	-
78	5300050149		Screw Cover To Liner		Appelez-nous	-
80	09950853		Screw, Knob		Appelez-nous	-
86	5304464438		Run Capacitor   (Replaces: 216236300)			Immediately	$ 35.38
1A	297001500		Support Front Rh (3) (non-illustrated)   (Replaces: 08037928)				$ 18.08

    View Diagram in Separate Window       Print Part List
