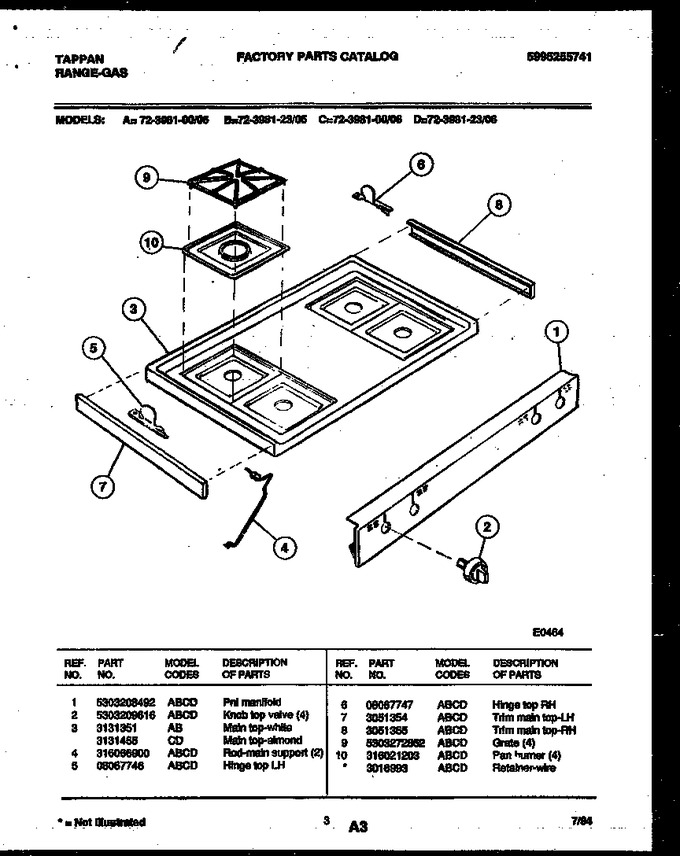

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303208492 | Pnl Manifold |
|
- | |||||
| 2 | 5303209616 | Knob-top Valve, (4) |
|
- | |||||
| 3 | 3131351 | Main Top,white |
|
- | |||||
| 4 | 316066900 | Rod-main Support (2) |
|
$ 66.31 | |||||
| 5 | 08067746 | Hinge-top Lh |
|
- | |||||
| 6 | 08067747 | Hinge-top Rh |
|
- | |||||
| 7 | 3051354 | Trim, Main Top, Lh |
|
- | |||||
| 8 | 3051355 | Trim, Main Top (rh) |
|
- | |||||
| 9 | 5303272852 | Grate, (4) |
|
$ 171.05 | |||||
| 10 | 316021203 | Pan Burner (4) |
|
- | |||||
| *10351 | 3016993 | Retainer-wire |
|
- |
