Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3206240 Gasket Door Special Order $ 287.18

9 216048601 Panel-inner Door, White Appelez-nous -
11 5303925368 Panel-frzr Door, White, W/handle &, Foam Insul Appelez-nous -
12 215366301 Frame - Nameplate,white Appelez-nous -
13 08016354 Door Stop Special Order $ 36.07

14 5303313518 Washer, Sealing Appelez-nous -
21 08005520 Screw-door Stop Appelez-nous -
22 5303210403 Bearing Appelez-nous -
22 216443600 Bearing Special Order $ 0.68

25 216022800 Screw, Washer Head, 8, 18 X 1/2 Appelez-nous -
26 5303300817 Gasket-secondary Appelez-nous -
27 5303212828 Screw, Panel Special Order $ 16.63

28 216115100 Rack-shelf, Rod Appelez-nous -
29 216333800 End Cap, Rh Special Order $ 60.43

30 216333900 End Cap, Lh Appelez-nous -
32 216390000 Breather-air Duct, Door Appelez-nous -
64 216403700 Plug-buttom, Base Door Special Order $ 58.12

93 216858001 Screw   (Replaces: 5303161215) In-Stock Immediately $ 10.85

*77600 5303917276 Insulation Special Order $ 330.91


    View Diagram in Separate Window     Print Icon   Print Part List

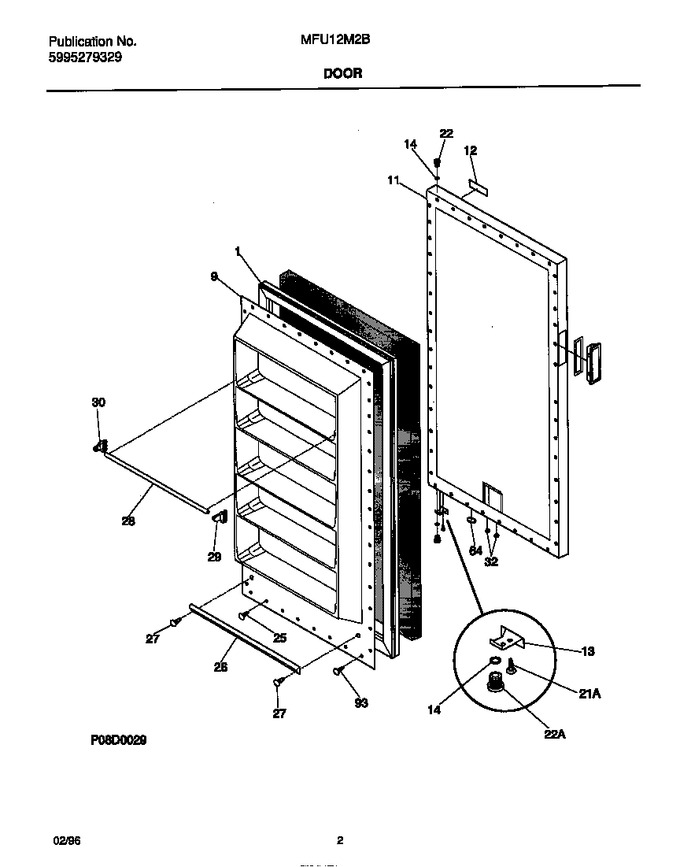

Diagram for MFU12M2BW3
