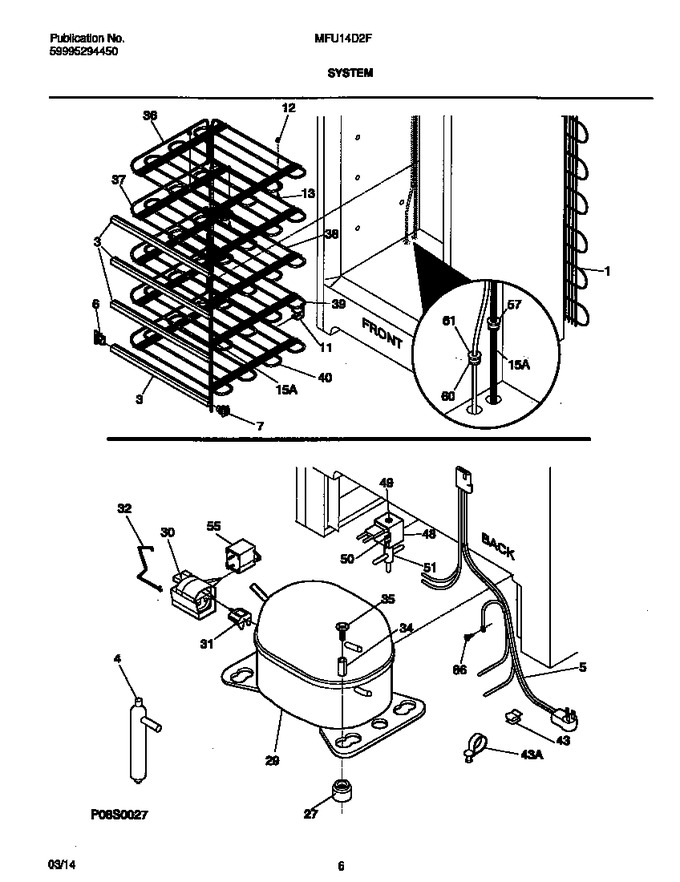

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300123788		Condenser				$ 635.80
3	5304509722		Trim-shelf, Evaporator   (Replaces: 216097800)				$ 28.20
4	5303305677		Drier, Filter   (Replaces: 216099900)			Immediately	$ 31.67
5	216500000		Harness-electrical		Appelez-nous	-
6	297001600		Support-shelf,front Lh   (Replaces: 3091418)				$ 18.08
7	297001500		Support, Shelf, Front Rh   (Replaces: 08037928)				$ 18.08
11	216474600		Support-rear Shelf				$ 16.55
12	216225700		Grommet-spacer				$ 7.77
13	216138900		Screw,hex Sems ,8-18ab X 1.00 ,evap				$ 3.31
15	216500700		Heat Exchanger		Appelez-nous	-
27	216498900		Grommet,compressor				$ 13.01
29	5304507765		Compressor, R134a, With Overload   (Replaces: 5303925366)			Immediately	$ 677.23
30	216008900		Starter-ptc		Appelez-nous	-
31	216100108		Overload Protector				$ 38.12
32	216147800		Wire-bale		Appelez-nous	-
34	5306594529		Sleeve-compressor				$ 10.34
35	5303272328		Screw, Lnd Hex Sems, 1/4-28 Unfx, Compressor				$ 10.34
36	297234400		Grid-top Evaporator   (Replaces: 216070100)				$ 369.42
37	216500500		Shelf-top Evaporator		Appelez-nous	-
38	216070300		Shelf-middle Evaporator		Appelez-nous	-
40	216070400		Shelf-bottom Evaporator		Appelez-nous	-
43	09950610		Clip		Appelez-nous	-
43	5303212614		Clip Harness				$ 2.88
48	3201514		Solenoid		Appelez-nous	-
49	3201513		Clip, Valve		Appelez-nous	-
50	5303297422		Wire-ground, Solenoid		Appelez-nous	-
51	216500800		Valve-formed		Appelez-nous	-
55	5304464438		Capacitor-run   (Replaces: 216236200)			Immediately	$ 35.38
57	5303322438		Plug-suction Line		Appelez-nous	-
60	216500600		Tubing-hot Gas		Appelez-nous	-
61	5303305647		Plug-hot Gas Tube		Appelez-nous	-
86	216036600		Screw, Rwhd (gx, Ca), 8, 32 X 1/2		Appelez-nous	-
