SELECT A DIAGRAM

01 - Cover


02 - Door


03 - Cabinet

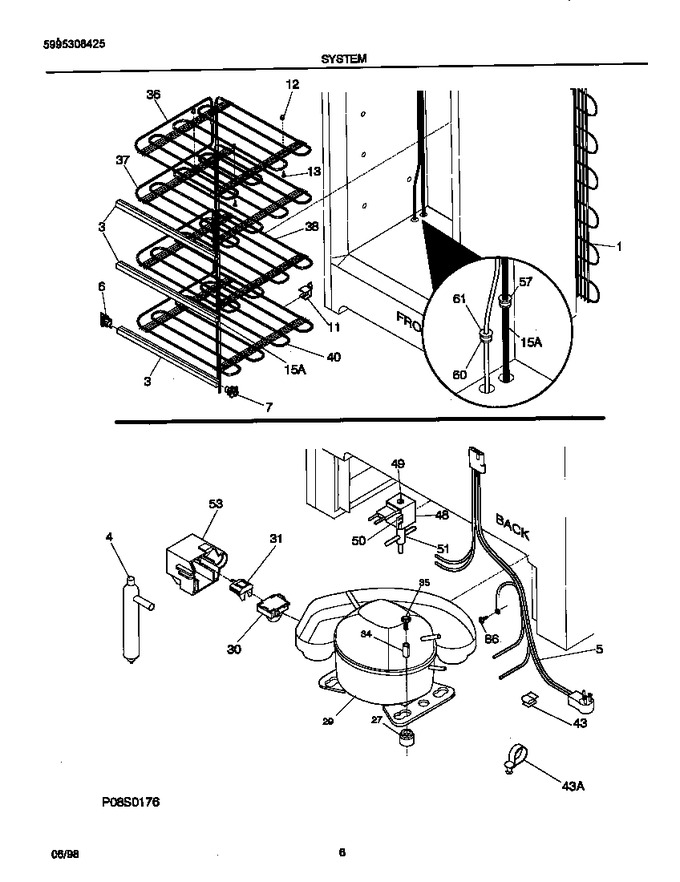

04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300123788		Condenser				$ 635.80
3	5304509722		Trim-shelf, Evaporator   (Replaces: 216097800)				$ 28.20
4	5303305677		Drier, Filter   (Replaces: 216099900)			Immediately	$ 31.67
5	216561600		Harness-main		Appelez-nous	-
6	297001600		Support-shelf,front Lh   (Replaces: 3091418)				$ 18.08
7	297001500		Support, Shelf, Front Rh   (Replaces: 08037928)				$ 18.08
11	216474600		Support-rear Shelf				$ 16.55
12	216225700		Grommet-spacer				$ 7.77
13	216138900		Screw,hex Sems ,8-18ab X 1.00 ,evap				$ 3.31
15	216500700		Heat Exchanger		Appelez-nous	-
27	216498900		Grommet,compressor				$ 13.01
29	5304511983		Compressor W\drain Pan   (Replaces: 5303925450)				$ 671.86
30	216596700		Starter,factory Instal		Appelez-nous	-
31	216100116		Overload Protector,factory Instal		Appelez-nous	-
34	5306594529		Sleeve-compressor				$ 10.34
35	5303272328		Screw, Ind Hex Sems, 1/4, 28 Unfx, Compressor				$ 10.34
36	297234400		Grid-top Evaporator   (Replaces: 216070100)				$ 369.42
37	216500500		Shelf-top Evaporator		Appelez-nous	-
38	216070300		Shelf-middle Evaporator		Appelez-nous	-
40	216070400		Shelf-bottom Evaporator		Appelez-nous	-
43	5303212614		Clip Harness				$ 2.88
43	09950610		Clip		Appelez-nous	-
48	3201514		Solenoid		Appelez-nous	-
49	3201513		Clip, Valve		Appelez-nous	-
50	216533400		Wire-ground,solenoid		Appelez-nous	-
51	216500800		Valve-formed		Appelez-nous	-
53	216347800		Cover, Compressor		Appelez-nous	-
57	5303322438		Plug-suction Line		Appelez-nous	-
60	216500600		Tubing-hot Gas		Appelez-nous	-
61	5303305647		Plug-hot Gas Tube		Appelez-nous	-
86	216036600		Screw, Rwhd (gx, Ca), 8, 32 X 1/2		Appelez-nous	-
87	08037849		Screw				$ 8.98
*93202	5303208622		Clip Grounding		Appelez-nous	-
