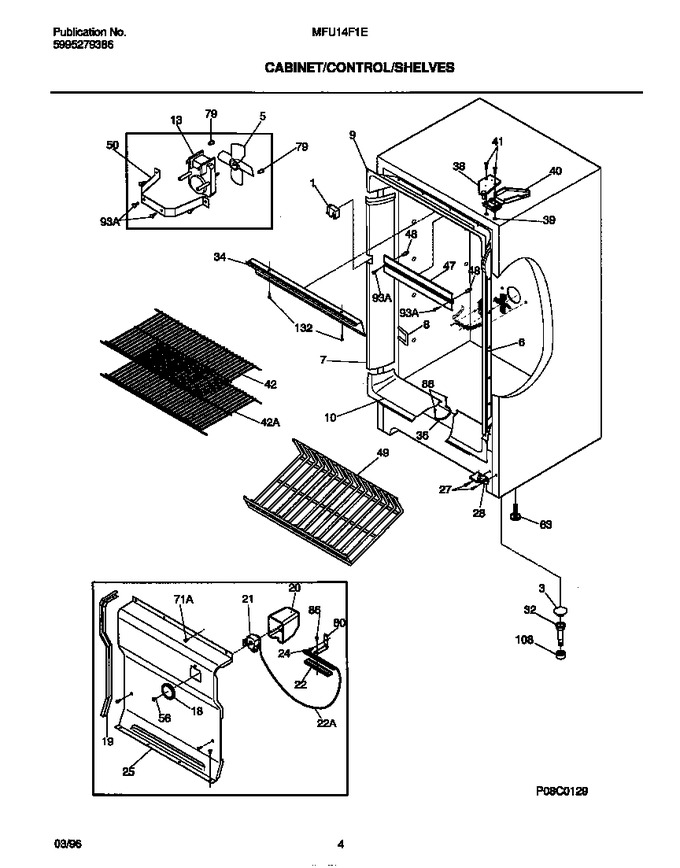

03 - Cabinet/control/shelves


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen, Drain   (Replaces: 5308037403)				$ 62.17
5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 49.03
6	216108600		Breaker, Hinge Side		Appelez-nous	-
7	216108700		Breaker, Lock Side		Appelez-nous	-
9	216073300		Breaker Top		Appelez-nous	-
10	216073200		Breaker Bottom		Appelez-nous	-
13	216409700		Motor-evap Fan		Appelez-nous	-
18	216008801		Knob-control		Appelez-nous	-
19	216204900		Gasket, Evap Cover				$ 51.45
20	216230300		Cover, Temp Control				$ 49.88
21	216303500		Control-temperature		Appelez-nous	-
22	05878562		Clamp		Appelez-nous	-
22	5303916855		Insulator, Plastic Tubing, Temp Sensor				$ 60.96
24	5300052943		Screw, Clamp, Truss Hd Cr, Control				$ 5.30
25	216137400		Cover-evaporator		Appelez-nous	-
27	154518001		Screw-hinge, Cr, 1/4-20 X 1.000, Btm   (Replaces: 5303205738)				$ 10.54
28	216247400		Hinge-bottom		Appelez-nous	-
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
34	216312301		Shield-light		Appelez-nous	-
36	06594651		Wire, Ground		Appelez-nous	-
38	5303925086		Hinge-upper		Appelez-nous	-
39	5303294372		Nut Insert-hinge				$ 43.68
40	5303212912		Cover, Hinge		Appelez-nous	-
41	5303212937		Screw-top Hinge		Appelez-nous	-
42	216266500		Shelf-upper, (1)		Appelez-nous	-
42	216266600		Shelf-bottom (1)		Appelez-nous	-
47	5303288233		Baffle-plate		Appelez-nous	-
48	08000456		Spacer Baffle Plate		Appelez-nous	-
49	216278800		Trivet		Appelez-nous	-
50	216394050		Bracket-motor Mtg Fan   (Replaces: 216394000)				$ 22.75
56	09950853		Screw, Knob		Appelez-nous	-
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
71	131168200		Screw, Pph B St/z, 8-18 X .31			Immediately	$ 14.18
79	301036		Nut-insert   (Replaces: 3017666)				$ 15.90
80	06594601		Bracket, Control				$ 17.64
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
108	216388600		Trap-drain				$ 2.36
132	5303283898		Screw, 6-20ab X 3/8		Appelez-nous	-
*13680	06594680		Clip, Breaker		Appelez-nous	-
*13681	216502500		Sleeve, Suction Line   (Replaces: 5303207297)				$ 10.85
*13682	5303207388		Wire, Ground, Fan Motor		Appelez-nous	-
*13683	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
