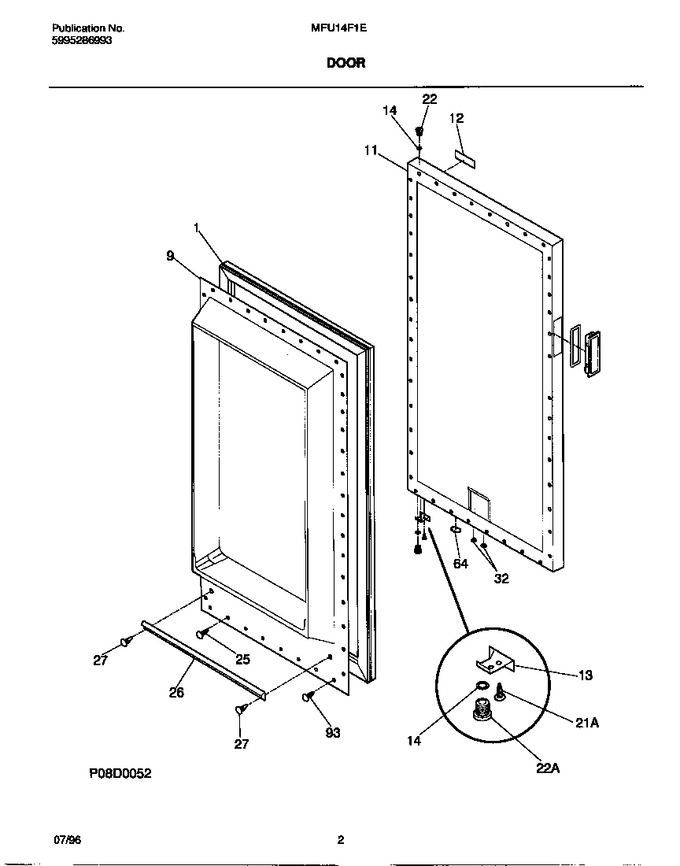

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Door
03 - Cabinet/controls/shelves
04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3206246 | Gasket-door |
|
$ 238.51 | |||||
| 9 | 216063700 | Panel-inner Door, White |
|
- | |||||
| 11 | 216412105 | Panel-outer Door Assy, W\handle &, Foam Insul, White |
|
- | |||||
| 12 | 215366301 | Frame - Nameplate,white |
|
- | |||||
| 13 | 08016354 | Door Stop |
|
$ 36.07 | |||||
| 14 | 5303313518 | Washer, Sealing |
|
- | |||||
| 21 | 08005520 | Screw-door Stop |
|
- | |||||
| 22 | 216443600 | Bearing |
|
$ 0.68 | |||||
| 22 | 5303210403 | Bearing |
|
- | |||||
| 25 | 216022800 | Screw, Washer Head, 8, 18 X 1/2 |
|
- | |||||
| 26 | 5303300817 | Gasket-secondary |
|
- | |||||
| 27 | 5303212828 | Screw, Panel |
|
$ 16.63 | |||||
| 32 | 216390000 | Breather-air Duct, Door |
|
- | |||||
| 64 | 216403700 | Plug-buttom, Base Door |
|
$ 58.12 | |||||
| 93 | 216858001 | Screw (Replaces: 5303161215) |
|
Immediately | $ 10.85 |
