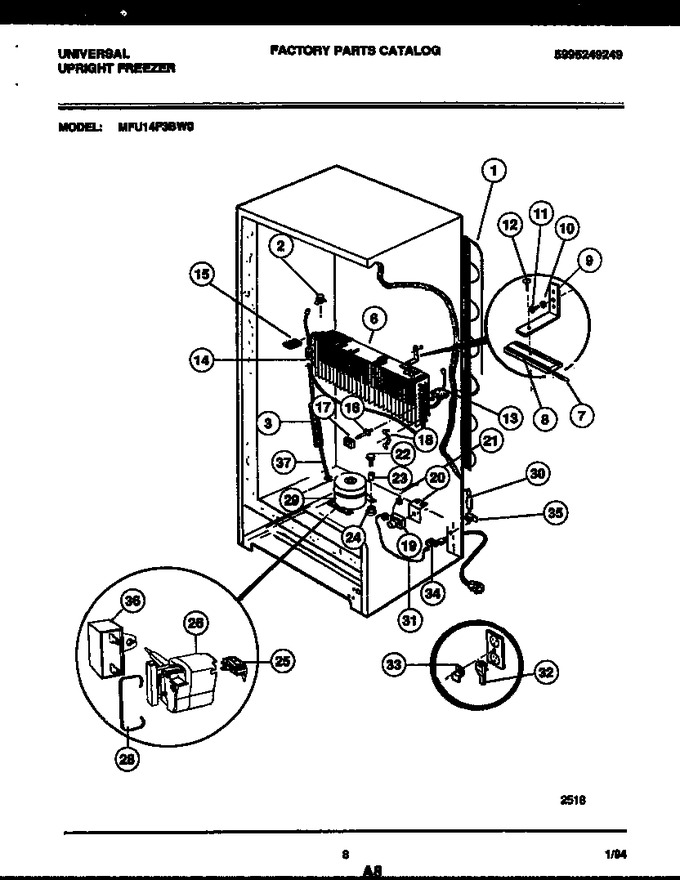

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300123788		Condenser				$ 635.80
2	216254500		Switch-termination				$ 91.67
3	5303208489		Sleeve, Tubing (2)		Appelez-nous	-
6	216247200		Evaporator				$ 154.35
7	5308037932		Sleeve, Capillary Tube		Appelez-nous	-
8	05878562		Clamp		Appelez-nous	-
9	06594601		Bracket, Control				$ 17.64
10	5300095480		Washer		Appelez-nous	-
11	216036600		Screw, Bracket		Appelez-nous	-
12	5300052943		Screw, Clamp				$ 5.30
13	06599531		Air Seal, Rh		Appelez-nous	-
14	216247000		Heater-defrost		Appelez-nous	-
15	3017674		Air Seal, Lh		Appelez-nous	-
16	06599544		Support, Evaporator		Appelez-nous	-
17	06599547		Spacer		Appelez-nous	-
18	06599536		Clip, Heater		Appelez-nous	-
19	5308037967		Timer, Defrost		Appelez-nous	-
20	08016580		Bracket, Timer		Appelez-nous	-
21	216858001		Screw, Bracket   (Replaces: 5303161215)			Immediately	$ 10.85
22	5303272328		Screw-compressor (3)				$ 10.34
23	5306594529		Sleeve Compressor (3)				$ 10.34
24	216498900		Grommet (4)   (Replaces: 5308002681)				$ 13.01
25	5303206885		Overload				$ 119.23
26	216008900		Relay		Appelez-nous	-
28	216147800		Clamp		Appelez-nous	-
29	216120800		Compressor		Appelez-nous	-
30	5303305677		Drier-filter   (Replaces: 5308000027)			Immediately	$ 31.67
31	216269000		Harness		Appelez-nous	-
32	5300086065		Power Cord		Appelez-nous	-
33	08016777		Retainer Power Cord (not Original Equipment. Customer Pu		Appelez-nous	-
34	5303212614		Clip Harness				$ 2.88
35	240396801		Clamp, Nylon   (Replaces: 5308000133)				$ 19.13
36	5304464438		Run Capacitor   (Replaces: 216236300)			Immediately	$ 35.38
37	216246800		Heat Exchanger		Appelez-nous	-
